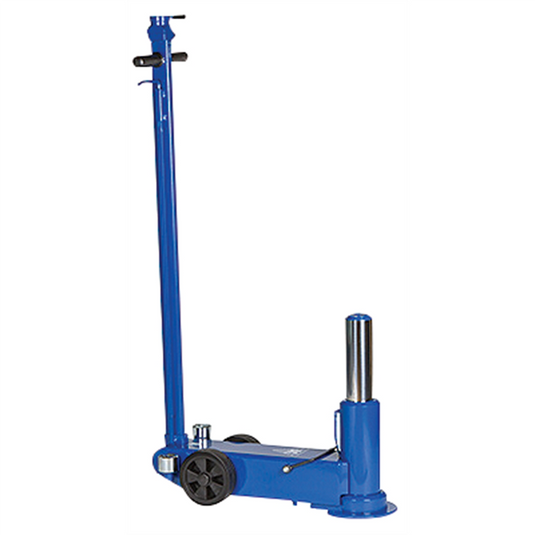

AME Air Hydraulic Jack; 25 Ton

Features and Benefits:

• Single stage air hydraulic jack for agricultural and contractors’ machinery; trailers and other high clearance applications.
• Minimum height of 14.21""
• Maximum height of 24.06""; the F250 (optional) extension offers a total extended height of 33.90 in
• Hard chromium plated piston rod for long life.
• Built-in safety overload valve.
• Hand-operated dead-man’s control for optimum safety whilst lifting and lowering.
• 25-1HTH model with telescopic handle increasing the reach under the vehicle to 212 mm ensuring safe and easy operation.
• With 2 extensions (1.97/3.94"")
• Capacity: 55;000 lbs
• Min Height: 14.21""
• Max Height: 24.06 ""
• Frame Length: 32.17""
• Handle Length: 53.35""
• Width: 9.06""
• Width (with wheels): 12.28""
• Air Supply: 130-174 psi
• Air Consumption: 350 I/min
• Weight: 157 lbs
