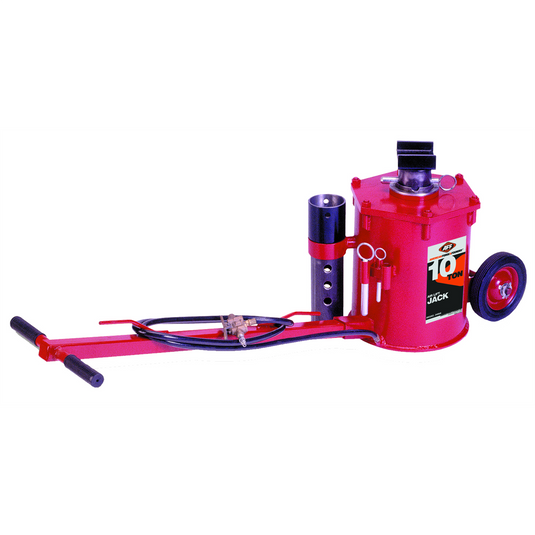

American Forge & Foundry AFF - Air Lift Jack - 10 Ton Capacity

Features and Benefits:

• Color: Red/Black
• Capacity: 10 Ton
• Product Type: Air Lift Jack
• Power Type: Air
• Operation: Air Valve
• Minimum Height: 17.3""
• Maximum Height: 51.2""
• Chassis Length (in.): 12.75""
• Chassis Width: 12.75""
• Reach (in.): N/A
• Lift: 12.4""
• Saddle Diameter: 5"" x 4""
• Saddle Spread (in.): N/A; Fixed
• Handle Length (in.): 38.5""
• Working Air Pressure: 200 PSI
• Weight: 172 Lbs.
• Wheels: Qty 2 - 8"" Rubber Wheels
• Certification: ASME/PASE 2019
• Warranty: 1 Year
• Adapters Included: Qty 2 - Extensions; Saddle
• Special Features: 3 Way Air Valve| Automatic Safety Lock
• This Air Lift Jack is designed for lifting and supporting trailers; large trucks; buses; farm; industrial; and construction equipment.
• 10-ton capacity achieved at 200-PSI air supply.
• Low height 18"" to high height with all extensions used 52"".
• Heavy-duty air valve offers accurate lift control.
• Removable ""T"" handle for easy storage.
• Extension tubes offer multiple lifting and locking positions.
• 12"" Lift travel.
• Large diameter rubber tread wheels.



American Forge & Foundry features a wide range of specialty jacks for the trucking; agriculture; fleet; and military sectors. Each is designed for applications where extra capacity; added reach; or height may be required.
