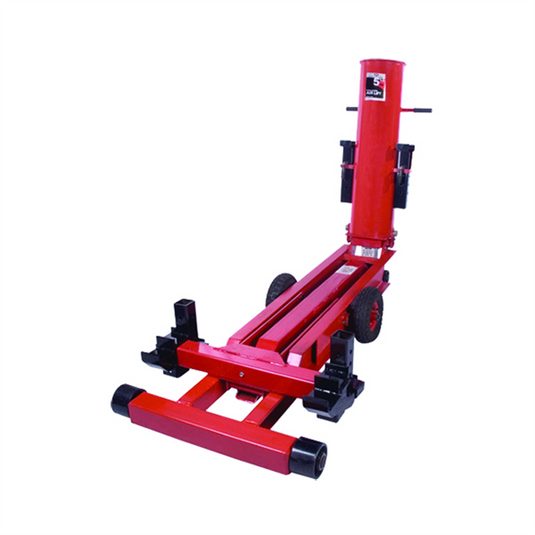

American Forge & Foundry AFF - Air Lift Jack - 5.5 Ton Capacity - Long Reach

Features and Benefits:

• Color: Red/Black
• Capacity: 5.5 Ton
• Product Type: Air Lift Jack
• Power Type: Air
• Operation: Air Valve
• Minimum Height: 9.5""
• Maximum Height: 88.2""
• Chassis Length (in.): 84""
• Chassis Width: 36""
• Reach (in.): 13""
• Lift: 34.6""
• Saddle Diameter: 7"" x 3""
• Saddle Spread (in.): 23"" - 45""
• Handle Length (in.): 9.4""
• Working Air Pressure: 160PSI
• Weight: 730 Lbs.
• Wheels: Qty 2 - 8"" Pneumatic Wheels; Qty 2 - 5"" Steel Wheels
• Certification: ASME/PASE 2019
• Warranty: 1 Year
• Adapters Included: 2 Different Saddle Sizes & a Drop Axle Adapter
• Special Features: 3 Way Air Valve| Automatic Safety Lock
• Designed for heavy-duty low-profile vehicles that require a longer reach to be securely lifted at the vehicle front axle or frame and can also be used on the bumper.
• The scissor action design and full shop air operation (160 PSI) provide more lift height under low profile vehicles.
• Using its multiple saddle sizes and adjustments along with its standard drop-axle adapter it can lift from as low as 6-1/2"" to a high 53-1/2"" with a long 48"" forward reach.
• Steel saddles adjust between 23"" & 45"" widths to accommodate a variety of vehicle applications.
• 48"" forward reach (distance from cylinder to saddles).
• Two saddle sizes and drop axle adapter increase versatility.
• Three-way heavy-duty air valve for precision lifting.
• Automatic safety lock engages in five preset positions.
• Two large pneumatic wheels for easy maneuverability.



American Forge & Foundry features a wide range of specialty jacks for the trucking; agriculture; fleet; and military sectors. Each is designed for applications where extra capacity; added reach; or height may be required.
