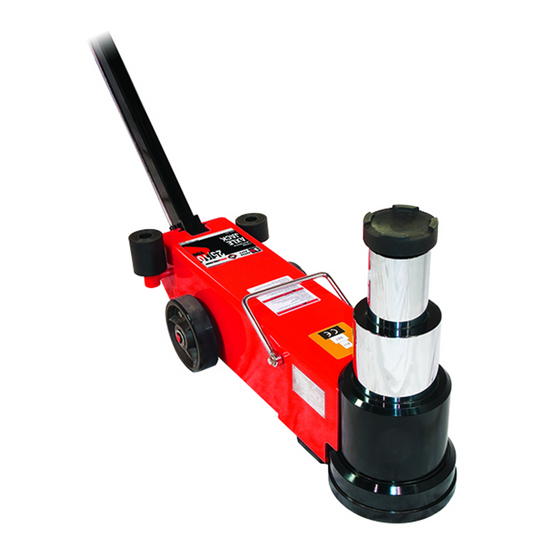

American Forge & Foundry AFF - Axle Jack - 2 Stage - 25/10 Ton Capacity - Air/Hydraulic - SUPER DUTY
American Forge & Foundry

American Forge & Foundry AFF - Axle Jack - 2 Stage - 25/10 Ton Capacity - Air/Hydraulic - SUPER DUTY

SKU: INT546SD

$2,749.99
$2,749.99
Sale Sold out
/
This is a pre order item. We will ship it when it comes in stock.

Features and Benefits:

  • Color: Red/Black
  • Capacity: 25/10 Tons
  • Product Type: Axle Jack
  • Stages: 2
  • Power Type: Hydraulic
  • Operation Type: Air Assist
  • Duty Level: Super Heavy Duty
  • Minimum Height (in.): 7.28""
  • Maximum Height without Extensions: 18.66""
  • Maximum Height with Extensions: 23.16""
  • Ram Lift (in.) - Stage 1: 3.82""
  • Ram Lift (in.) - Stage 2: 7.56""
  • Ram Lift (in.) - Stage 3: N/A
  • Capacity (T) - Stage 1: 25 Tons
  • Capacity (T) - Stage 2: 10 Tons
  • Capacity (T) - Stage 3: N/A
  • Handle Length (in.): 54""
  • Number of Handle Pieces: 1
  • Handle Locking Positions: 90°/45°/180°
  • Chassis Length (in.): 35.5""
  • Chassis Width (in.): 16""
  • Saddle Diameter: 4""
  • Number of Extensions: 2
  • Extension Sizes (in.): 1.75"" & 3""
  • Extension Screw: N/A
  • Wheel Diameter (in.): 8""
  • Working Air Pressure: 116 - 174 PSI
  • Weight: 128 Lbs.
  • Warranty: 1 Year
  • Certification: ASME/PASE 2019
  • Special Features: Air Return|High Speed Air Motor|Overload BypassAmerican Forge & Foundry�s Axle Jacks are engineered to withstand the extreme conditions of all heavy-duty applications including roadside service; fleet maintenance; agriculture; military sectors; and much more.
  • SUPER HEAVY DUTY; 2 Stage 25 Ton and 10 Ton built tough for the rigors of the Heavy-Duty Trucking; Agricultural and Fleet business.
  • An integral Descent Metering Valve maintains a controlled and safe lowering of the load
  • The piston head seal design is borrowed from Industrial technology providing a superior low- and high-pressure seal; giving this jack a much better hold under severe load conditions
  • Double polished chromed pistons allow for much tighter tolerances which reduces oil bypassing and reduced ram scoring.
  • The extra-long 138cm (54”) handle can be locked in 3 positions for easy positioning of this jack in hard to reach places.
  • Single piece base construction provides superior strength for increased load stability.
  • Air assisted lowering speeds up ram retraction.
  • Built in overload safety valve prevents damage to unit due to excessive load.
  • Comes with 2 extensions (3”; 1.75”) and saddle adapter.
