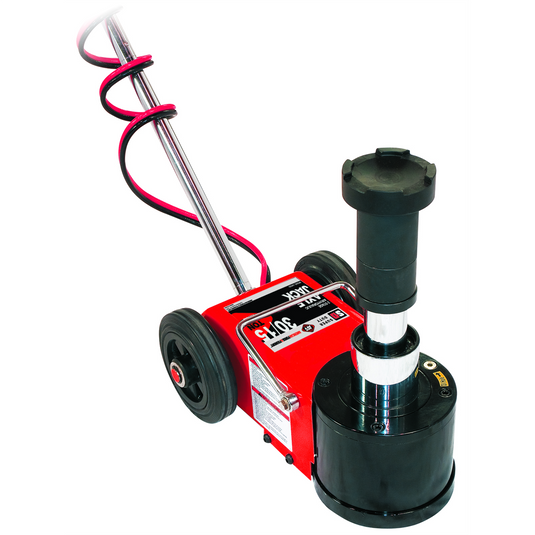

American Forge & Foundry AFF - Axle Jack - 2 Stage - 30/15 Ton Capacity - Air/Hydraulic - SUPER DUTY

Features and Benefits:

• Color: Red/Black
• Capacity: 30/15 Tons
• Product Type: Axle Jack
• Stages: 2
• Power Type: Hydraulic
• Operation Type: Air Assist
• Duty Level: Super Heavy Duty
• Minimum Height (in.): 5.92""
• Maximum Height without Extensions: 11.42""
• Maximum Height with Extensions: 16.17""
• Ram Lift (in.) - Stage 1: 2.91""
• Ram Lift (in.) - Stage 2: 5.59""
• Ram Lift (in.) - Stage 3: N/A
• Capacity (T) - Stage 1: 30 Tons
• Capacity (T) - Stage 2: 15 Tons
• Capacity (T) - Stage 3: N/A
• Handle Length (in.): 54""
• Number of Handle Pieces: 1
• Handle Locking Positions: 90°/45°/180°
• Chassis Length (in.): 20""
• Chassis Width (in.): 16""
• Saddle Diameter: 4""
• Number of Extensions: 2
• Extension Sizes (in.): 1.75"" & 3""
• Extension Screw: N/A
• Wheel Diameter (in.): 8""
• Working Air Pressure: 116 - 174 PSI
• Weight: 77 Lbs.
• Warranty: 1 Year
• Certification: ASME/PASE 2019
• Special Features: Air Return|High Speed Air Motor|Overload BypassAmerican Forge & Foundry�s Axle Jacks are engineered to withstand the extreme conditions of all heavy-duty applications including roadside service; fleet maintenance; agriculture; military sectors; and much more.
• SUPER HEAVY DUTY; 2 Stage 30 Ton and 15 Ton built tough for the rigors of the Heavy-Duty Trucking; Agricultural and Fleet business.
• An integral Descent Metering Valve maintains a controlled and safe lowering of the load
• The piston head seal design is borrowed from Industrial technology providing a superior low- and high-pressure seal; giving this jack a much better hold under severe load conditions
• Double polished chromed pistons allow for much tighter tolerances which reduces oil bypassing and reduced ram scoring.
• Built in overload safety valve prevents damage to unit due to excessive load.
• The extra light weight and portability makes this the ideal service jack for Service Vehicles.
• 2 Stages and lifting capacities of 30 and 15 Ton make this a very versatile jack.
• The extra-long removable handle and rugged rear wheels make for easy positioning in hard-to-reach places.
• Comes with 2 extensions (3""; 1.75"") and saddle adapter.
• Air assisted lowering speeds up ram retraction.
• Units are tested to -13F(-25C) and +113F(+45C) as well as off center loading to ensure a long life under the harshest conditions.
• Low height makes this one of the lowest operating heavy jacks on the market.
• Ideally suited for drop axles and other low clearance jobs.
