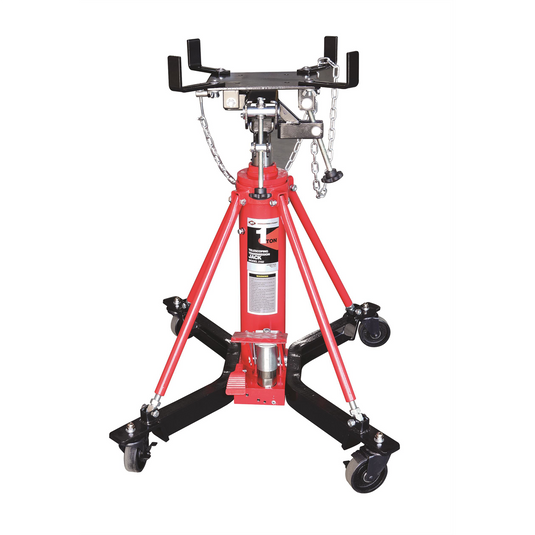

American Forge & Foundry AFF- Pump Piston Assembly

Features and Benefits:

• Color: Red/Black
• Unit Type: Telescopic Transmission Jack
• Power Type: Hydraulic
• Operation Type: Manual
• Ram Stages: 2
• Capacity: 1 Ton
• Minimum Height: 37""
• Maximum Height: 76""
• Front Tilt: 28°
• Rear Tilt: 49°
• Head Width: 8” x 8” to 14” x 14”
• Base Width: 28” x 32”
• Working Air Pressure: N/A
• Warranty: 1 Year
• Weight: 183 Lbs.
• Certification: ASME/Pase 2019
• Two stage telescopic ram designed for medium duty transmissions; transfer cases; and differentials.
• Double pump hydraulic system for quick lift operation.
• Powder coat finish provides resistance to corrosion; chemicals; and scratches.
• Chrome plated pump core and piston rod reduces friction and provides long service life.
• Adjustable saddle with corner bracket and safety chain.



American Forge & Foundry�s Transmission Jacks provide the service technician the capability for “one-man” removal and installation of bulk transmissions; differentials; transfer cases; fuel tanks; and more. AFF offers telescoping; low profile; and high lift styles in both manual hydraulic and air assist.
