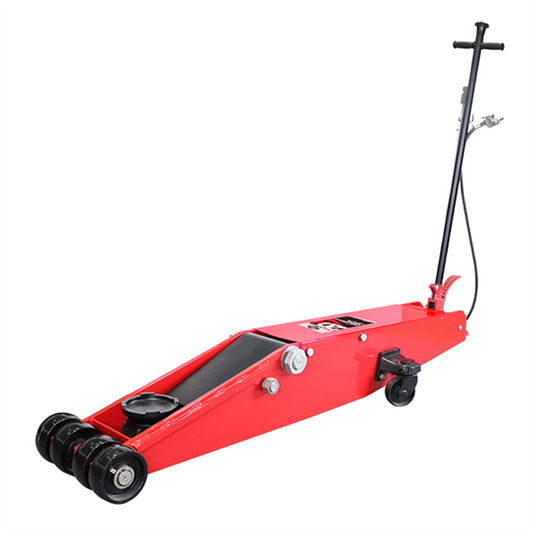

American Forge & Foundry AFF - Service Jack - 20 Ton Capacity - Long Chassis - Air Assist/Manual - 7.5"" Min H to 26.375"" Max H - Heavy Duty

Features and Benefits:

• Color: Red/Black
• Capacity: 20 Ton
• Minimum Height: 7.2""
• Maximum Height: 26.37""
• Power Type: Air/Hydraulic
• Operation Type: Air/Manual/Foot Pedal
• Quick Lift Feature: Oversized Pump Piston for More Flow
• Working Air Motor Pressure: 115-200 PSI
• Release Assembly: U-Joint
• Chassis Type: Long Chassis Service Jack
• Chassis Length (in.): 66""
• Chassis Width (in.): 13.80""
• Handle Type: T-Handle
• Handle Length (in.): 46""
• Handle Type (Pcs): 1
• Saddle Size: 5.7""
• Includes Saddle Pad: No
• Saddle Pad Material: N/A
• Handle Bump Protector: No
• Rear Casters: Qty 2
• Front Wheels: Qty 2
• Hydraulic Return Spring: Yes
• Overload Bypass Valve: Yes
• Handle Return Spring: No
• Handle Docking Position: 90°
• Handle Locking Positions: 90°/45°/180°
• Service Parts Available: Yes
• Duty Level: Super Duty
• Weight (lb.): 562 Lbs.
• Warranty: 1 Year
• Certification: ASME/PASE 2019
• Ideal for truck tire and repair shops; fleet service; maintenance shops; military bases; and job sites.
• Heavy duty pumps; rams; and cylinders are precision machined and inspected to ensure long service life and superior performance.
• Super long 66"" body for easier lifting of vehicles with long overhangs.
• Handle mounted locking control lever locks handle in one of three positions: vertical; 45 degrees; or horizontal.
• Foot operated pump for quick lifting efficiency. Built with an automatic overload safety valve. Air motor on designed for use with compressed air system between 90-120 PSI for convenient lifting.



Designed with the professional service technician in mind; AFF service jacks are built to withstand the rigors of everyday use and are among the most durable in the industry today. Heavy gauge steel; UV powder coated paint; upgraded seals and overload protection are just some of the features that make AFF service jacks stand out in the shop.
