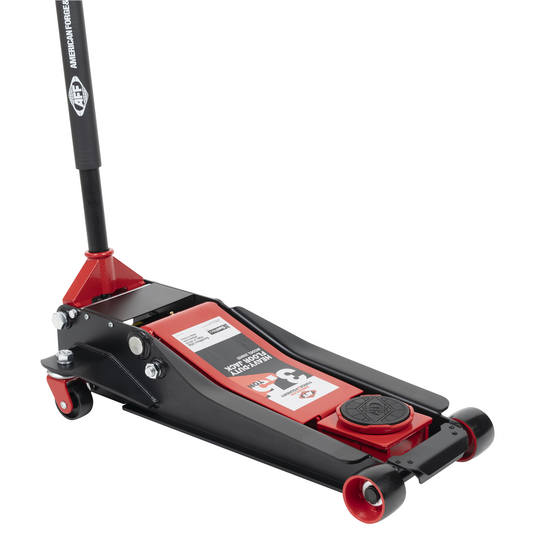

American Forge & Foundry AFF - Service Jack - 3.5 Ton Capacity - Lightning Lift - Short Chassis - 1 pc Handle - 3.75"" Min H to 20.5"" Max H - Heavy Duty

Features and Benefits:

• Color: Red/Black
• Capacity: 3.5 Ton
• Minimum Height: 3.75""
• Maximum Height: 20.5""
• Power Type: Hydraulic
• Operation Type: Manual
• Quick Lift Feature: Lightning™ Lift - Single Piston One Pump To Load
• Working Air Motor Pressure: N/A
• Release Assembly: U-Joint
• Chassis Type: Short Chassis Service Jack
• Chassis Length (in.): 27""
• Chassis Width (in.): 14.4""
• Handle Type: Straight
• Handle Length (in.): 48""
• Handle Type (Pcs): 1
• Saddle Size: 5.1""
• Includes Saddle Pad: Yes
• Saddle Pad Material: Rubber
• Handle Bump Protector: Yes
• Rear Casters: Qty 2
• Front Wheels: Qty 2
• Hydraulic Return Spring: Yes
• Overload Bypass Valve: Yes
• Handle Return Spring: Yes
• Handle Docking Position: 90°
• Handle Locking Positions: N/A
• Service Parts Available: Yes
• Duty Level: Heavy Duty
• Weight (lb.): 92.5 Lbs.
• Warranty: 1 Year
• Certification: ASME/PASE 2019
• Lightning™ hydraulic lift system quickly raises the saddle in one pump to load and the vehicle to desired lift height.
• Premium quality; seals; and O-rings provide extended jack life
• Ball-bearing rear mounted swivel casters for easy maneuverability
• Equipped with safety bypass valve to prevent overloading. Includes 1pc handle
• Meets or exceeds 2019 ASME PASE Standards



Designed with the professional service technician in mind; AFF service jacks are built to withstand the rigors of everyday use and are among the most durable in the industry today. Heavy gauge steel; UV powder coated paint; upgraded seals and overload protection are just some of the features that make AFF service jacks stand out in the shop.
