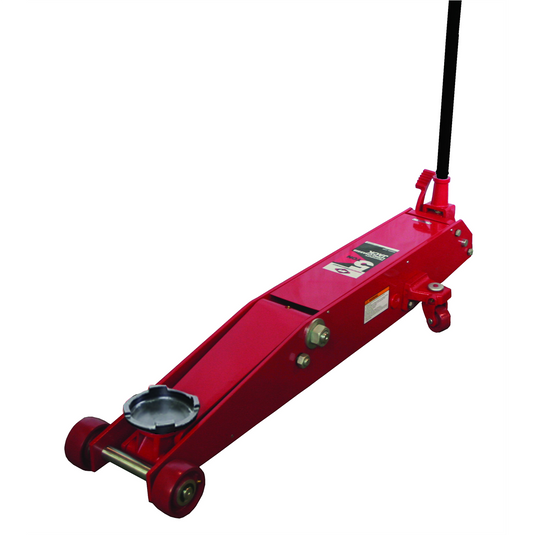

American Forge & Foundry AFF - Service Jack - 5 Ton Capacity - Long Chassis - Manual - 6"" Min H to 22.5"" Max H - Heavy Duty

Features and Benefits:

• Color: Red/Black
• Capacity: 5 Ton
• Minimum Height: 6""
• Maximum Height: 22.5""
• Power Type: Hydraulic
• Operation Type: Manual/Foot Pedal
• Quick Lift Feature: Oversized Pump Piston for More Flow
• Working Air Motor Pressure: N/A
• Release Assembly: U-Joint
• Chassis Type: Long Chassis Service Jack
• Chassis Length (in.): 56""
• Chassis Width (in.): 11.8""
• Handle Type: T-Handle
• Handle Length (in.): 39.7""
• Handle Type (Pcs): 1
• Saddle Size: 5.5""
• Includes Saddle Pad: No
• Saddle Pad Material: N/A
• Handle Bump Protector: No
• Rear Casters: Qty 2
• Front Wheels: Qty 2
• Hydraulic Return Spring: Yes
• Overload Bypass Valve: Yes
• Handle Return Spring: No
• Handle Docking Position: 90°
• Handle Locking Positions: 90°/45°/180°
• Service Parts Available: Yes
• Duty Level: Heavy Duty
• Weight (lb.): 254 Lbs.
• Warranty: 1 Year
• Certification: ASME/PASE 2019
• Long 56"" body for easier lifting of vehicle with long overhangs.
• Foot-operated pump for quick lifting efficiency. A handle-mounted control lever to lock handle in 1 of 3 positions.
• Automatic overload safety valves.
• Swivel casters for ease of maneuverability in tight shop situations. Large; rugged 4-1/2"" front wheels and 2-3/4"" rear casters.
• Designed for heavy-duty lifting applications (such as bus and truck fleets; agricultural; industrial; and heavy construction equipment) requiring access to very low hard-to-reach areas.



Designed with the professional service technician in mind; AFF service jacks are built to withstand the rigors of everyday use and are among the most durable in the industry today. Heavy gauge steel; UV powder coated paint; upgraded seals and overload protection are just some of the features that make AFF service jacks stand out in the shop.
