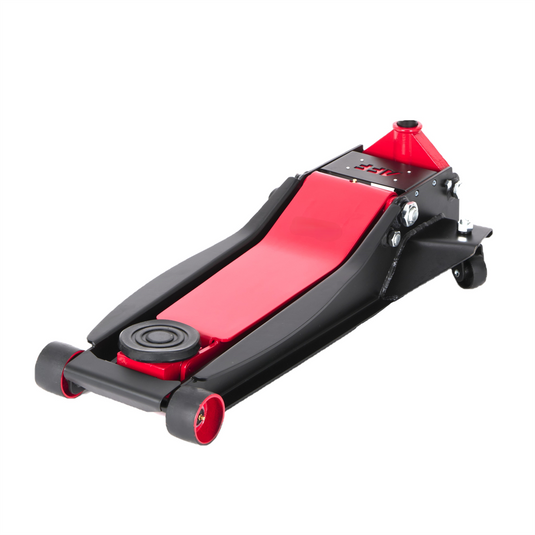

American Forge & Foundry Service Jack - 3.5 Ton Capacity - Lightning Lift - Short Chassis - 2 pc Handle - 3.35-Inch Min H to 24.21-Inch Max H - High Lift

Features and Benefits:

• Lightning hydraulic lift system quickly raises the saddle in one pump to load and the vehicle to desired lift height.
• Premium quality; seals; and O-rings provide extended jack life
• Ball-bearing rear mounted swivel casters for easy maneuverability
• Equipped with safety bypass valve to prevent overloading
• Jack is equipped with a rubber saddle pad and foam handle bumper to protect the vehicle. Includes 2pc handle. Meets or exceeds 2019 ASME PASE Standards
• Color: Red/Black
• Capacity: 3.5 Ton
• Minimum Height: 3.35""
• Maximum Height: 24.21""
• Power Type: Hydraulic
• Operation Type: Manual
• Quick Lift Feature: Lightning Lift - Single Piston One Pump To Load
• Working Air Motor Pressure: N/A
• Release Assembly: U-Joint
• Chassis Type: Short Chassis Service Jack
• Chassis Length (in.): 31.30”
• Chassis Width (in.): 15.35""
• Handle Type: Straight
• Handle Length (in.): 50""
• Handle Type (Pcs): 2
• Saddle Size: 4.25""
• Includes Saddle Pad: Yes
• Saddle Pad Material: Rubber
• Handle Bump Protector: Yes
• Rear Casters: Qty 2
• Front Wheels: Qty 2
• Hydraulic Return Spring: Yes
• Overload Bypass Valve: Yes
• Handle Return Spring: Yes
• Handle Docking Position: 90°
• Handle Locking Positions: N/A
• Service Parts Available: Yes
• Duty Level: Super Duty
• Weight (lb.): 106.94 Lbs.
• Warranty: 1 Year
• Certification: ASME/PASE 2019



Designed with the professional service technician in mind; AFF service jacks are built to withstand the rigors of everyday use and are among the most durable in the industry today. Heavy gauge steel; UV powder coated paint; upgraded seals and overload protection are just some of the features that make AFF service jacks stand out in the shop.
