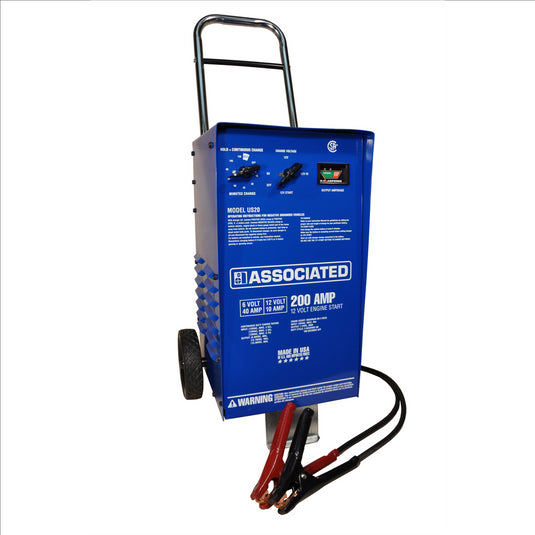

Associated US20 6V/12V 40A/10A Wheel Battery Charger with 200A Engine Start and 90 MInute Timer

Features and Benefits:

• 40/40/10 Amps Continuous Rating 6/12 Volts
• 40 Amp Continuous Rating at 6/12 Volts
• 200 Amp Cranking Assist with a full 330Amps Manufacturers Boost Rating
• 90 Minute Timer with HOLD
• Appeals to the Small Shop Owner and the “Do-It-Yourself” End User
• Fan Cooling Mechanism Prevents Overheating - Enhancing Units Life Span Significantly
• Convenient Handle with Grip and Quality Steel Foot for Long Lasting Use
• CSA Listed for US and Canada
• Two Year Warranty
• “Safe In Any Weather” Operation
• MADE IN USA



The ideal battery charger for the small shop or do-it-yourself user. Features 40 ampere continuous rating at 6/12 volts with 200 ampere cranking assist and a full 330 amps manufacturer boost rating; and a 90 minute timer. The fan cooling mechanism prevents over-heating and significantly extends the life of the charger.

Specifications:

• Model Number: US20
• Continuous Rating: 40/40/10 Amp
• Cranking Assist Rating: 200 Amps
• Manufacturers Boost Rating: 330 Amps
• Cable/Clamp Rating: 6.5 Feet 6.5 AWG/400 Amp
• Warranty: Two Years
• Shipping Dimensions: 14.5” x 13” x 24”
• Weight: 35 LBS
• AC Cord / Voltage: 6 Feet 16-3 / 120VAC 60 Hz
• Timer: 90 Minute Timer with Hold
