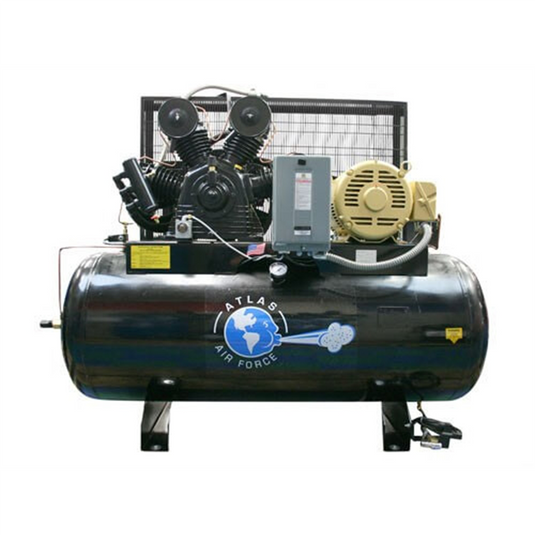

Atlas Automotive Equipment 15HP 3-PHASE 120 GAL COMPRESSOR
Atlas Automotive Equipment

Atlas Automotive Equipment 15HP 3-PHASE 120 GAL COMPRESSOR

SKU: ATEATAF15PLUS

$6,299.00
$6,299.00
Sale Sold out
/
This is a pre order item. We will ship it when it comes in stock.

Features and Benefits:

  • ""Plus Package"": aftercooler; low oil shut off; auto-tank drain
  • 2-Stage Pump
  • 15hp; low RPM Motor
  • 120 Gallon Horizontal Tank (Made in the USA)
  • Air Output 145-175 PSI
  • Extremely Quiet Operation
  • Magnetic Starter Included
  • Set of Vibro-Isolation Pads Included
  • Compressor oil drain extension tube
  • Finned tank inlet tube for reduced tank water accumulation
  • Heavy Duty Metal Belt Guard
  • Electric: 220volt/3phase
  • 1 Year Parts Only Warranty

The Atlas® Air Force AF15PLUS is 220volt THREE (3) Phase electric. The AF15PLUS is a heavy duty; commercial grade compressor that is perfect for large automotive repair or body shops looking for the most air possible. The Atlas® AF15PLUS comes standard with the air compressor ""PLUS PACKAGE."" The “PLUS"" features for our commercial grade two stage air compressors include an automatic low oil monitor; automatic tank drain; and air cooled aftercooler. These three features help to extend the life of your Atlas® air compressor while also delivering “better air”. The AF15PLUS also comes standard with the added capacity of an oversized 120 Gallon horizontal tank.

The Atlas® Air Force AF15PLUS operates between 145-175 PSI. This model comes standard with a USA made 120 gallon horizontal steel tank and also includes a magnetic starter. The magnetic starter controls the electric input and adds to the longevity of the unit

The Atlas® Air Force air compressors are powerful; belt driven reciprocating air compressors designed and built to offer years of trouble-free service. The Atlas® Air Force compressors are built to the same exacting standards as the entire line of Atlas® professional grade automotive equipment

Atlas® Air Force AF15PLUS Specifications

  • Motor Running: 15 Horsepower
  • Pressure Setting: 145-175 PSI
  • Delivered CFM at 100 PSI: 52
  • Delivered CFM at 175 PSI: 49
  • Tank Capacity: 120 Gallons
  • Compressor Pump: 4 Cylinder; 2-Stage
  • Air Outlet Size: 1/2"" NPT
  • Overall Dimensions: L 81"" x W 34"" x H 60""
  • Motor/Electrical Requirement: 220volt 3-Phase; 30 amp breaker required
  • Shipping Weight: 1000 lbs
