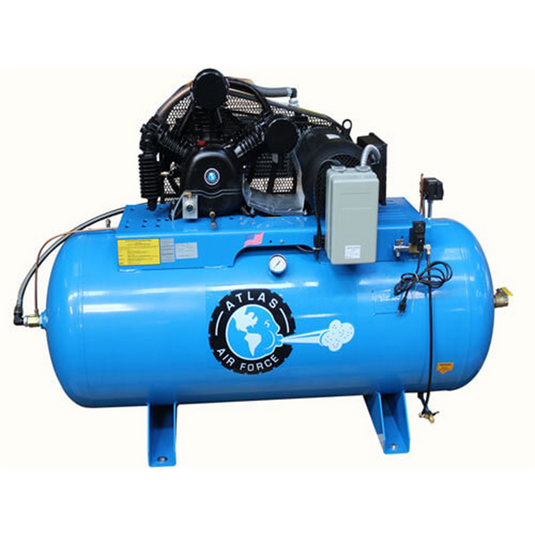

Atlas Automotive Equipment 7.5HP 12O GAL COMPRESSOR W/ PLUS PACKAGE

SKU: ATEATAF9PLUS-17-120G-H

Regular price $4,399.00
Sale price $4,399.00 Regular price
Sale Sold out
Unit price
/per
This is a pre order item. We will ship it when it comes in stock.

Features and Benefits:

  • ""Plus Package"": aftercooler; low oil shut off; auto-tank drain
  • 2-Stage Pump
  • 7.5hp; 1725 RPM Motor
  • 120 Gallon Horizontal Tank (Made in the USA)
  • Air Output 145-175 PSI
  • Extremely Quiet Operation
  • Magnetic Starter Included
  • Set of Vibro-Isolation Pads Included
  • Finned tank inlet tube for reduced tank water accumulation
  • Heavy Duty Metal Belt Guard
  • Electric: 220volt/1phase
  • 1 Year Parts Only Warranty

This version of our popular Atlas® Air Force AF9-17 inlcudes the ""PLUS PACKAGE."" The “PLUS"" features for our commercial grade two stage air compressors include an automatic low oil monitor; automatic tank drain; and air cooled aftercooler. These three features help to extend the life of your Atlas® air compressor while also delivering “better air”. This version also comes with the added capacity of an oversized 120 Gallon horizontal tank.

Atlas® Air Force AF9PLUS-17-120G-H is the perfect compressor for many auto shops of all sizes and is recommend for any business that depends on their air compressor to deliver flawlessly every business day.

Atlas® Air Force AF9PLUS-17-120G-H operates between 145-175 PSI. This model comes standard with a USA made 120 gallon horizontal steel tank and also includes a magnetic starter. The magnetic starter controls the electric input and adds to the longevity of the unit

The Atlas® Air Force air compressors are powerful; belt driven reciprocating air compressors designed and built to offer years of trouble-free service. The Atlas® Air Force compressors are built to the same exacting standards as the entire line of Atlas® professional grade automotive equipment

Atlas® Air Force AF9PLUS-17-120G-H Specifications

  • Motor Running: 7.5 Horsepower
  • Motor RPM: 1725
  • Pressure Setting: 145-175 PSI
  • Delivered CFM at 100 PSI: 24.8
  • Delivered CFM at 175 PSI: 22.8
  • Tank Capacity: 120 Gallons
  • Compressor Pump: TK50 3 Cylinder; 2-Stage
  • Air Outlet Size: 1/2"" NPT
  • Overall Dimensions: L 73"" x W 29 1/2"" x H 50""
  • Motor/Electrical Requirement: 220volt Single Phase; 30 amp breaker required
  • Shipping Weight: 835 lbs
