Atlas Automotive Equipment 9000 LB 4 POST LIFT (WILL CALL)

• 9;000 lb. Capacity
• Free Standing/Portable Design
• Heavy Duty
• Extra Tall & Extra Wide
• Diamond Plated Runways
• Single Point Lock Release
• Lock Ladder Design
• Double Lock Safety System
• Ability to Mount Power Unit on Any Corner
• Steel Approach Ramps Included
• Steel Jack Tray Included
• Plastic Drip Trays Included
• Wheel Stops Included
• Caster Kit With Polyurethane Wheels Available (Sold Separately)
• Anchor Bolts Optional (Included)
• Perfect for Storage or Working on Vehicles
• 110volt Electric Operation (Requires 30amp Breaker)
• 5 Year Structural/2 Year Hydraulic Warranty
• Shipping Weight: 2;065 lbs.
• This part number WILL CALL ONLY

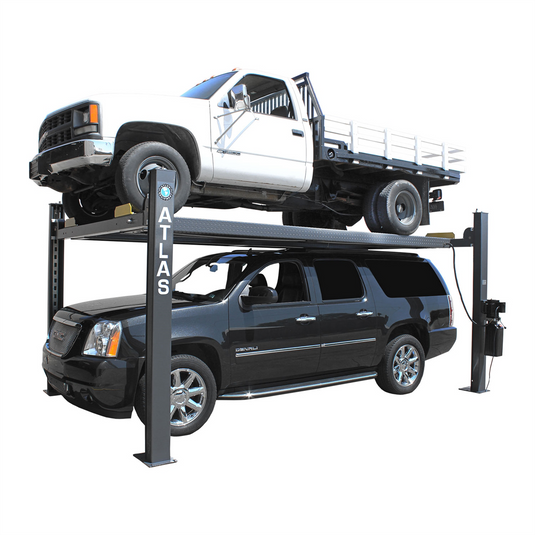

The Atlas® 409HP is a light commercial grade portable four post lift built for the small body shop; farm shop; restoration shop or the discerning Individual buyer who needs extra height and width. The 409HP incorporates taller columns and a long hydraulic cylinder that allow the runways to be raised 79 inches (under runway) in the highest lock position. This extra lifting height allows most SUVs and pickup trucks to be parked underneath the vehicle stored on top and the extra runway width between the columns easily accommodates 1 ton dual wheel trucks

The Atlas® 409HP four post above ground lift incorporates many features that are not found in any of our competitors' four post lifts that are sold in the USA. The 409HP includes free plastic drip trays and a free steel jack tray. A caster kit with poly wheels is available for this lift; if purchased it can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside. Finally; the Atlas® 409HP features ""tracks"" between the runways to allow the use of a rolling bridge jack (such as the Atlas® RJ6BK or Atlas® RJ6BKAH) on the lift.

The commercial grade features of the 409HP make this lift a great choice for automotive service center or ""Mr. Homeowner"" that needs a PORTABLE professional four post lift at a competitive price.

• Capacity: 9000 lbs
• Lifting Height; Top of Runway: 85 1/2"" (7' 1 1/2"")
• Clearance Under Runways: 79"" (6' 7"")
• Height of Columns: 94 3/4"" (7' 10 3/4"")
• Overall Width: 126 1/4"" (10' 6 1/4"") w/ motor 134 1/4"" (11' 2 1/4"")
• Overall Length w/ Ramps: 230 5/8"" (19' 2 5/8"")
• Runway Length: 190"" (15' 10"")
• Runway Width: 20""
• Runway Thickness: 5""
• Width Between Runways: 45"" w/ Rail 42 3/8""
• Outside Runway to Outside Runway: 85 3/4"" (7' 1 3/4"")
• Clearance Between Columns: 112 5/8"" (9' 4 5/8"")
• Length Between Columns: 178 3/4"" (14' 10 3/4"")
• Drive Thru: 98"" (8' 2"")
• Motor/Electrical Requirement: 110volt; 30 amp breaker required
• Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
• Shipping Weight: 2065 lbs
