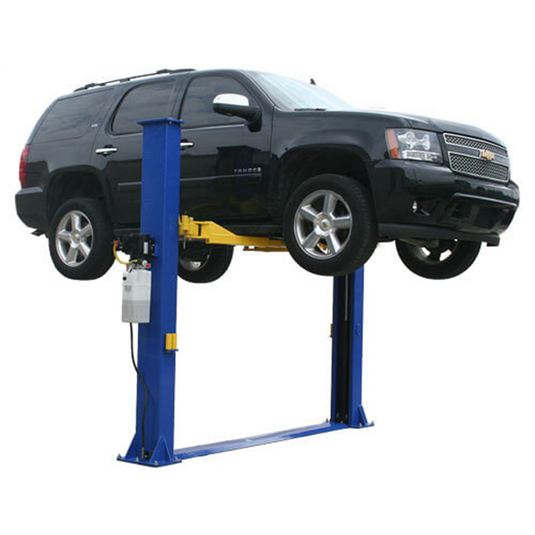

Atlas Automotive Equipment 9KBPX Baseplate 2-Post Lift 9;000 lb. Capacity (WILL CALL)

Features and Benefits:

• 9;000 lb. Capacity
• Baseplate; Open-Top Style Lift
• Designed For Low Ceiling Clearance ‐ 9' 3 1/2"" Columns
• Symmetric Arms
• Dual Hydraulic Chain-Drive Cylinders
• Secondary Lock System (SLS)
• Free 8 Piece Truck Adapter Set
• Automatic Arm Restraints
• Dual Point Lock Release
• Mounting Hardware Included
• Shipping Weight: 1;400 lbs.
• 2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only

The Atlas® 9KBPX is an economically designed baseplate two-post lift great for low ceiling garages. The total column height of 111 1/2"" (9 feet 3 1/2 inches) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 6 inches. The Atlas® 9KBPX ""chain over roller"" lift features a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain. The reliable dual chain-drive cylinders; symmetric arms; and automatic arm restraints make this the perfect choice for ""Mr. Homeowner"" or small commercial shop looking to service cars; SUV's and light duty trucks (not recommended to lift Diesel Dually or other large trucks).

Specifications:

• Capacity: 9;000 LB.
• Overall Floor Width: 134 1/2"" (11' 2 1/2"")
• Outside Column to Outside Column: 124 7/8"" (10' 4 7/8"")
• Maximum Lift Height (Without Adapters): 74 1/2""
• Maximum Lift Height (With Adapters): 81""
• Minimum Arm Height: 4""
• Inside Column: 110"" (9' 2"")
• Drive Thru: 101"" (8' 5"")
• Column Size: 7 1/4"" x 11""
• Motor/Electrical Requirement: 220 volt single (1) phase. A 30 amp breaker is recommended
• Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight: 1;400 LBS.
• Adapter Heights: 4 Each 1.5""; 5""

Documents:

Owner's Manual:

2 Post Cylinder Bleeding Information:
