Atlas Automotive Equipment BP8000 Baseplate 2-Post Lift 8;000 lb. Capacity (WILL CALL)

Features and Benefits:

• 8;000 lb. Capacity
• Hobbyist Grade Lift ‐ Not intended for heavy commercial use
• Baseplate; Open-Top Style Lift
• 3-Stage front arms/2-Stage rear arms
• Automatic Arm Restraints
• Single-Point Lock Release
• Double Safety Lock System
• Dual Hydraulic Chain-Drive Cylinders
• Free 12 Piece Truck Adapter Set
• Mounting Hardware Included
• Shipping Weight: 1;300 lbs.
• 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only

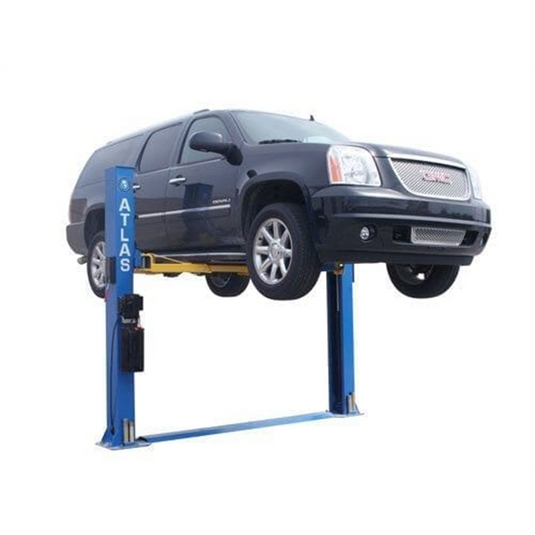

The Atlas® BP8000 is a baseplate two-post lift designed for low ceiling garages. The total column height of 108 inches or 9 feet allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 foot 3 inches. The BP8000 also has many of the popular features found on larger more expensive lifts; including a single-point lock release; Super-symmetric arms; and a twelve piece truck adapter set.

Specifications:

• Capacity: 8;000 LB.
• Outside Column to Outside Column: 124"" (10' 4"")
• Maximum Lift Height (With Adapters): 86 1/2""
• Inside Column: 109 1/8"" (9' 1 1/8"")
• Drive Thru: 99"" (8' 3"")
• Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
