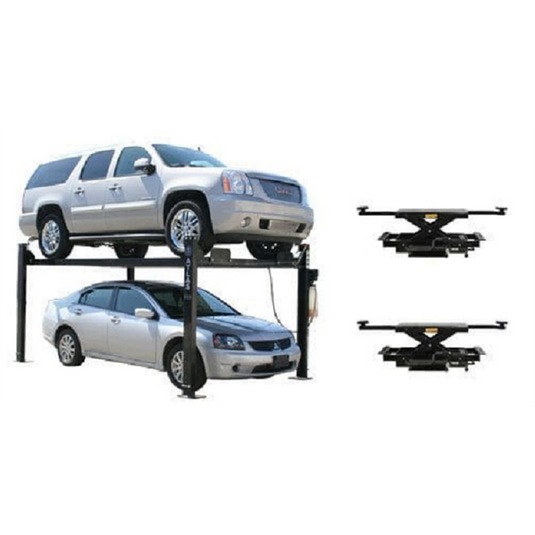

Atlas Automotive Equipment Atlas Equipment PRO8000EXT 4 Post Lift + RJ35 Sliding Jacks Combo (WILL CALL)

Features and Benefits

• Combo package includes Garage Pro8000EXT & two RJ35 Bridge Jacks
• Caster Kit With Polyurethane Wheels Included
• Steel Approach Ramps Included
• Steel Jack Tray Included
• 4 Plastic Drip Trays Included
• Wheel Stops Included
• Truck Adapter set for each Bridge Jack Included
• Jack comes with truck adatper set
• This part number WILL CALL ONLY

The Atlas® Garage PRO8000EXT is a true 8;000 LB. four post lift and is one of our most popular hobbyist lifts. This lift incorporates many of the great features of both the Atlas® Garage PRO8000 and the Atlas® Garage PRO9000.

Many of our customers drive an SUV or pick up truck and wanted a storage lift that would “go higher” to allow them to park their taller vehicles under the elevated platform. Many of our competitors sell “taller” lifts. However; their “taller” lifts also have longer runways. Our customers requested that we make a lift which lifts higher; but without the extra length (longer runways take up valuable garage space). Most customers want to store a car on top and park a SUV or pick up truck below. The Atlas® Garage Pro 8000 EXT has been engineered to provide 79? of clearance UNDER the bottom of the raised runway. If you need the extra lifting height of the Atlas® Garage Pro 9000; but do not need the extra width and runway length provided by that lift; then the Atlas® Garage PRO8000EXT is the perfect choice.

This combo package also includes two of the the popular Atlas® RJ35 sliding bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.

• Capacity 8;000 Lb.
• Lifting Height To Top Of Runway 84 1/4"" (7' 1/4"")
• Clearance Under Runways 79"" (6' 7"")
• Height Of Columns 98 1/2"" (8' 2 1/2"")
• Overall Width (Without Motor) 104 1/2"" (8' 8 1/2"")
• Overall Width (With Motor) 115"" (9' 7"")
• Overall Length With Approach Ramp 206 3/4"" (17' 2 3/4"")
• Approach Ramp 37"" (3' 1"")
• Runway Width 21 1/4"" (w/ Rails) or 18 3/4"" (Driving Surface)
• Runway Length 165 3/4"" (13' 9 3/4"")
• Runway Thickness 4 1/2""
• Width Between Runways 37"" (3' 1"")
• Width Between Runway Rails 31 1/2"" (2' 7 1/2"")
• Outside Runway To Outside Runway 74 5/8"" (6' 2 5/8"")
• Clearance Between Columns 94 1/2"" (7' 10 1/2"")
• Length Between Columns 157 1/2"" (13' 1 1/2"")
• Maximum Wheel Base 153 1/2"" (12' 9 1/2"")
• Drive Thru (Outside Of Tire To Outside Of Tire) 80 1/2"" (6' 8 1/2"")
• Motor/Electrical Requirement 110 Volt; 30 AMP BREAKER REQUIRED
• Shipping Weight 1;850 lb.

• Atlas® RJ35 Sliding Jack Specifications

  • Capacity: 3500 lbs
  • Lower Extension Width (Between Runway): 20 1/2"" to 47""
  • Top Width (Arms Retracted & Extended): 39 12"" to 64 3/4""
  • Min. Pad Height Above Runway (MAY VARY BY LIFT): 3 1/2""
  • Lift Pad Height Above Arm: 1 3/8""
  • Max Height Raised w/o Adapter: 11""
  • Max Height Raised w/ Adapters: 17 1/4""
  • Shipping Weight: 350 lbs
  • Adapter Heights: 2 Each 1 1/2""; 5""
  • Arm Hole/Adapter Peg Size: 1 1/2""
