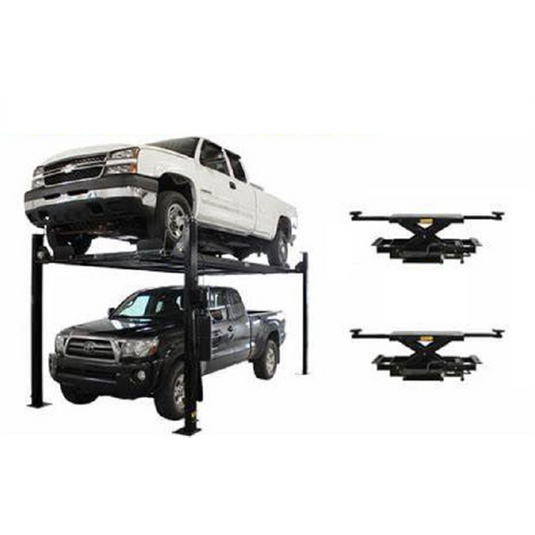

Atlas Equipment PRO8000EXT-L 4 Post Lift + RJ35 Sliding Jacks Combo

Features and Benefits:

• Combo package Includes Garage Pro8000EXT-L & two RJ35 Bridge Jacks
• Caster Kit With Polyurethane Wheels Included
• Steel Approach Ramps Included
• Steel Jack Tray Included
• 4 Plastic Drip Trays Included
• Wheel Stops Included
• 2 Rubber Wheel Chocks Included
• Truck Adapter set for each Bridge Jack Included
• This part number FREIGHT PREPAID

The Garage PRO8000EXT-L features the extra lifting height of the PRO8000EXT but is also 20 inches longer and 3 inches wider. Or to compare to the original; the Garage PRO8000EXT-L is 20 inches longer; 3 inches wider; and 14 inches taller than the standard Atlas® Garage PRO8000! The extra runway length will accommodate almost all of the longer wheelbase pickup trucks; except duallys. This is because the dual rear wheels are TOO WIDE to fit between the column lock assemblies. Check out the Atlas® Garage PRO9000 if you need a portable lift for your dually!

This combo package also includes two of the the popular Atlas® RJ35 sliding bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.

Atlas® Garage PRO8000EXT-L Specifications

• Capacity 8;000 lbs.
• Lifting Height To Top Of Runway 84"" (7')
• Clearance Under Runways 78 1/2"" (6' 6 1/2"")
• Height Of Columns 98 1/2"" (8' 2 1/2"")
• Overall Width (Without Motor) 108"" (9�)
• Overall Width (With Motor) 116 1/2"" (9' 8 1/2"")
• Overall Length With Approach Ramp 222"" (18� 6”)
• Approach Ramp 37"" (3' 1"")
• Runway Width 22"" (w/ Rails) or 18 3/4"" (Driving Surface)
• Runway Length 185"" (15� 5”)
• Runway Thickness 4 1/2""
• Width Between Runways 38"" (3' 2"")
• Width Between Runway Rails 34"" (2� 10"")
• Outside Runway To Outside Runway 77 3/4"" (6' 5 3/4"")
• Clearance Between Columns 98"" (8� 2"")
• Length Between Columns 176 1/2"" (14� 8 1/2"")
• Maximum Wheel Base 173"" (14' 5"")
• Drive Thru (Outside Of Tire To Outside Of Tire) 84"" (7�)
• Motor/Electrical Requirement 110 Volt; 30 AMP BREAKER REQUIRED
• Shipping Weight 1;900 lb

• Atlas® RJ35 Sliding Jack Specifications

  • Capacity: 3500 lbs
  • Lower Extension Width (Between Runway): 20 1/2"" to 47""
  • Top Width (Arms Retracted & Extended): 39 12"" to 64 3/4""
  • Min. Pad Height Above Runway (MAY VARY BY LIFT): 3 1/2""
  • Lift Pad Height Above Arm: 1 3/8""
  • Max Height Raised w/o Adapter: 11""
  • Max Height Raised w/ Adapters: 17 1/4""
  • Shipping Weight: 350 lbs
  • Adapter Heights: 2 Each 1 1/2""; 5""
  • Arm Hole/Adapter Peg Size: 1 1/2""
