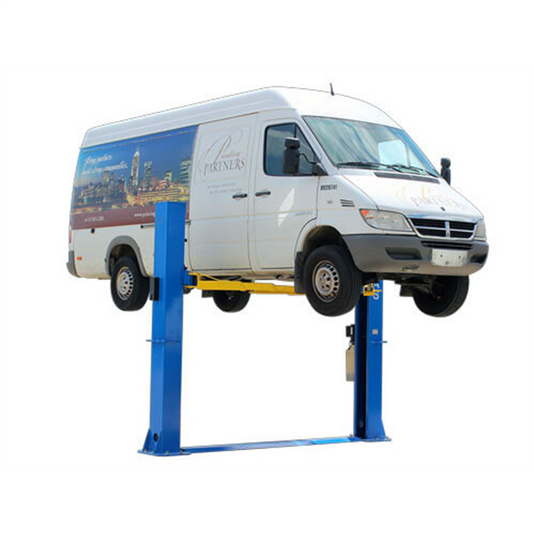

Atlas Automotive Equipment BP10000X Commercial Grade Baseplate 2-Post Lift 10;000 lb. Capacity

Features and Benefits:

• 10;000 lb. Capacity
• Commercial Grade
• Baseplate; Open-Top Style Lift
• Overall Height: 111 7/8"" (9' 3 7/8"")
• Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously
• Super-Symmetric Arms
• Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard
• Welded Support Gussets Increase Column Strength.
• Automatic Arm Restraints
• Powder Coat Finish
• Free 12 Piece Truck Adapter Set
• Shipping Weight: 1;640 LBS.
• 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only

The Atlas® BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas® BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling; this is the lift for your shop.

Specifications:

• Capacity: 10;000 LB.
• Overall Floor Width: 139 1/8"" (11' 7 1/8"")
• Outside Column to Outside Column: 134 1/2"" (11' 2 1/2"")
• Maximum Lift Height (Without Adapters): 77 3/8""
• Maximum Lift Height (With Adapters): 86 3/8""
• Minimum Arm Height: 4""
• Inside Column: 112 1/4"" (9' 4 1/4"")
• Drive Thru: 101 1/4"" (8' 5 1/4"")
• Column Size: 9 1/2"" x 11""
• Motor/Electrical Requirement: 220 volt single (1) phase. A 30 amp breaker is recommended
• Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight: 1;640 LBS.
• Adapter Heights: 4 Each 2""; 3""; 6""

Owner's Manual:
