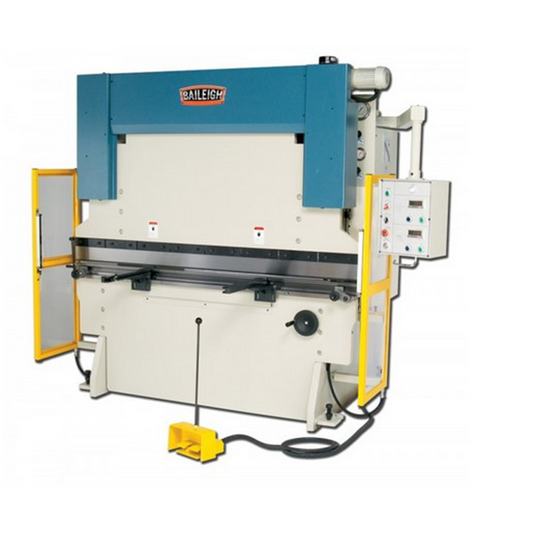

Baileigh 67 TON 78IN PRESS BREAK 220V 3 PH 60HTZ

Delivers up to67 tonsof pressure.;Bends sheet metal up to78.75” wide.;Maximum capacity of.157” thick sheet metalacross the machine�s full width.;7.5 hpmain motor runs on220-volt 3-phasepower.;Runs in3 modes: jog mode for setup; manual mode for more control over descent and return; and automatic mode for full production.;2 encoder-controlled hydraulic cylindersmove the top beam.;Digital readout (DRO)displays the position of the downward stroke; so you can fine-tune a bend and make it right every time.;It takes a just few seconds tochange the top beam pressureand the top position of the stroke (for more or less travel).;You can set atimer for bend delay to hold the beam downat the bottom of the stroke; so the bend won't lose its shape.;2 hand wheels let youadjust the position of the beam and back gaugefor consistency across the entire width of the beam.;Foot pedalbrings the stroke up and down; leaving your hands free to position the material.;Motorized back gaugerides on a solid ball screw trolley mechanism.;Back gauge encoder shows its position onits own DRO.;Parallel mechanism on the beamsynchronizes the top and bottom dieto deliver better quality bends across the entire width of the machine.;Heavy electrowelded frame; made of solid steel; enables this press brake to stay accurate and run smoothly in production for many years.;Massive7;700-pound constructionsupports the hydraulic pressure; so the machine stands firm at full capacity.;Upper beam rides on ahardened; stabilizing track; coupled together by 3 axes of bearings; to ensure high accuracy between both dies at any position of the stroke.;Includes aset of hardened single-Vee American tooling.;Accepts standard press brake tooling; giving you a wide variety of options.
