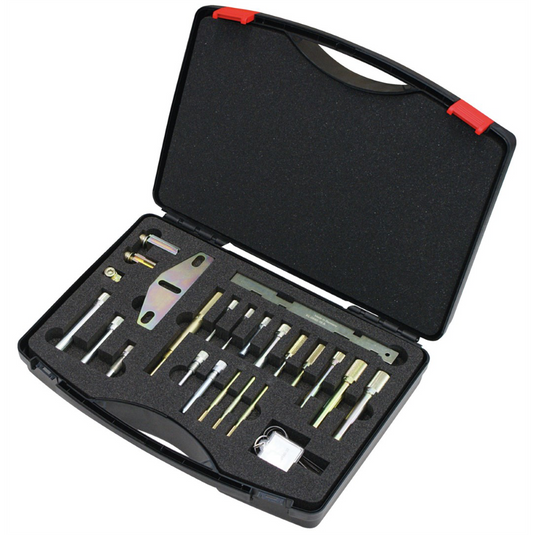

Gedore Locking Tool Set; Ford

Features and Benefits:

• Suitable for Ford; PSA; Mazda; Volvo 1.4; 1.6 HDi (PSA) and 1.4; 1.6 TDCi und 1.6 TDi; 1.8 TDi / TDdi / TDCi; 2.0; 2.4 16V TDdi / TDCi diesel engines.
• For locking the camshafts; crankshafts and the injection pump
• For locking the toothed belt tensioning unit
• Fits universally for Ford; PSA (Citro?n; Peugeot); Land Rover; Jaguar; Mazda; Volvo 1.4; 1.6 HDi (PSA) und 1.4; 1.6 TDCi (Ford) and 1.6 TDi; 1.8 TDi / TDdi / TDCi; 2.0; 2.4 16V TDdi / TDCi diesel engines. For Citro?n Berlingo; C1; C2; C3; C4; C5; Dispatch; DS3; DS4; Jumpy; Nemo; Xsara
• Fiat Scudo



This tool set is designed for the locking/positioning of engine shafts such as camshaft; crankshaft and injection pump shaft as well as of the timing belt tensioner. Essential tools when replacing a timing belt or performing an engine repair. Scope of Delivery: KL-0180-30 B Retaining Pin Set; 0.8 - 1.9mm. For locking the automatic timing belt tensioner when replacing a timing belt. Consists of: Key fob with ring and 6 retaining pins with � 0.8mm; � 1.2mm; � 1.4mm; � 1.5mm; � 1.7mm; � 1.9mm. KL-0680-10 Locking Pin; � 6mm; for crankshaft. Suitable for 1.8 D/TD/Tddi/TDCi Diesel engines. Engine codes: BHDA/B; BHPA; C9DA/B/C; F9DA/B; HCPA; KKDA; RFA; RFK; RFL; RFN; RTC; RTJ; RTK. KL-0680-1058 A Locking Tool for Flywheel; with Adaptor; 1.8 Diesel. Suitable for the 1.6 TDI and 1.8 D/TD/TDCI Diesel engines. Engine codes: RTN; RTQ; RTP; BHDB; BHPA; C9DA; C9DB; C9DC; F9DA; F9DB; FFBA; FFDA; FFWA; G6DA; G6DB; G6DC; HPCA; HPCB; P7PA; P9PA; QYBA; QYWA; R2PA; R3PA; RWPA; KKDA. KL-0680-11 A Locking Pin; � 8.3mm; for camshaft. Suitable for 2.5 D/TD/TCI Diesel engines. Engine codes: 4EB; 4EC; 4ED; 4FA; 4FB; 4FC; 4FD; 4GA; 4GB; 4GC; 4GD; 4GE; 4HB; 4HC. KL-0680-12 A Locking Pin; � 9.5mm; for injection pump. Suitable for 1.8 D/TD and 2.5 DI/Turbo/TCI Diesel engines. Engine codes: 4EB; 4EC; 4ED; 4FA; 4FB; 4FC; 4FD; 4GA; 4GB; 4GC; 4GD; 4GE; 4HB; 4HC; RFD; RFK; RFN; RKD; RTC; RTH; RTJ; RTK; RVA. KL-0680-13 A Locking Pin; � 12.9mm; for flywheel. Suitable for 2.5 DI/Turbo/TCI Diesel engines. Engine code: 4EB; 4EC; 4ED; 4FA; 4FB; 4FC; 4FD; 4GA; 4GB; 4GC; 4GD; 4GE; 4HB; 4HC. KL-0680-14 A Locking Pin; � 6mm; for camshaft and injection pump. Suitable for 1.8 D/TD Diesel engines. Engine codes: C9DC; RFA; RFD; RFK; RFL; RFN; RTB; RTC; RTH; RTJ; RTK. KL-0680-15 A Setting Gauge for Camshafts. Suitable for TwinCam petrol engines 1.25; 1.4; 1.6; 1.7; 1.8; 2.0 and 1.8 D/TD Diesel engines. Engine codes: C9DC; MHA; RFA; RFD; RFK; RFL; RFN; RTC; RTH; RTJ; RTK; Zetec DHA/DHB. KL-0680-16 Locking Pin; � 7.9mm; for crankshaft. Suitable for 1.6; 1.8; 2.0 16V petrol engines. Engine codes: L1F; L1J; NGA; RKA; RKB; Zetec. KL-0680-17 Locking Pin; � 5mm; for crankshaft. Suitable for 1.25; 1.4; 1.6; 1.7 16V petrol engines. Engine codes: Zetec DHA; DHB; DHC; DHD; DHE; DHF; DHG; FHA; FHE; L1T; L1V; MHA. KL-0680-18 Locking Pin; � 7.95mm; for crankshaft. Suitable for Ford petrol engines (1.25 Zetec-SE Sigma; 1.4 Duratec-16V Sigma; 1.6 Duratec-16V Sigma; 2.0 Duratec-RS Zetec; 1.4 Zetec-SE Sigma; 1.6 Zetec-SE Sigma; 2.0 Duratec-ST Zetec) Engine codes: F8JA; F8JB; FUJA; FXDA/C; FXDB/D; FXJA; FXJB; FYDA/C; FYDB/D; FYDH; FYJA; FYJB; HWDA; HXDA. KL-0680-2101 A Locking Pin; � 14mm; for flywheel. Suitable for Ford 2.0 and 2.4 16V TDCi engines. KL-0680-2102 A Locking Pin; � 13.5/9.5mm; for flywheel. Suitable for Ford 2.0 and 2.4 16V TDdi engines. KL-0680-2103 A Locking Pin; � 6mm; for camshafts and injection pump. Suitable for Ford 2.0 and 2.4 16V TDdi/TDCi engines. Engine codes: FMBA/B; D5BA; ABFA; D3FA; F3FA; D2FA; D4FA; F4FA. KL-0680-2201 A Locking Pin; � 11mm; for flywheel. Suitable for 1.4 and 1.6 HDi (PSA) and 1.4 and 1.6 TDCi (Ford) engines. Engine codes: 8HV; 8HW; 8HX; 9HX; 9HZ DV4TD; DV4TED4; DV6ATED4; DV6TED4 and F6JA; F6JB; F6JC; G8DA; G8DB; HHDA. KL-0680-2202 A Locking Pin; �
