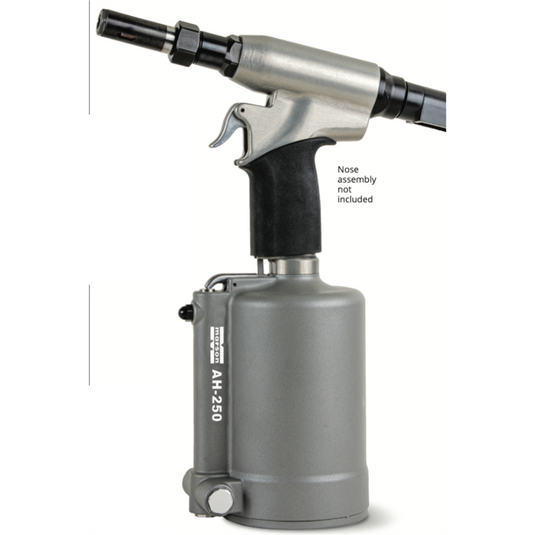

Huck Manufacturing Pneumatic rivet installation tool

Features and Benefits:

• Nose Assembly: Optional
• Stroke: .728""
• Pulling Force: 5;280lbs
• Capacity: Standard Rivets 5/32""-1/4""
• Structural Blind Rivets: 5/32""-1/4""
• C6L and Magna Grip: 3/16""-1/4""
• Weight: 5.58lbs



The new Marson® pneumatic-hydraulic installation tools features a powerful traction force of 5;280 lbf at 90 psi. To be equipped with interchangeable nose assemblies for setting various 3/16” & �” lockbolts; such as Huck® C6L® and Magna-Grip® and for setting various 3/16” & 1/4” structural blind rivets such as Huck® Magna-Lok®; Magna-Bulb®; HuckLock®; and Auto-Bulb®. Use Marson® Nose Assembly MUNA 8™ to set various 5/32”; 3/16”; 1/4”; & 5/16” Structural and Standard/Commercial blind rivets simply by exchanging different Nosepieces (anvil inserts). Nose Assembly sold separately.
