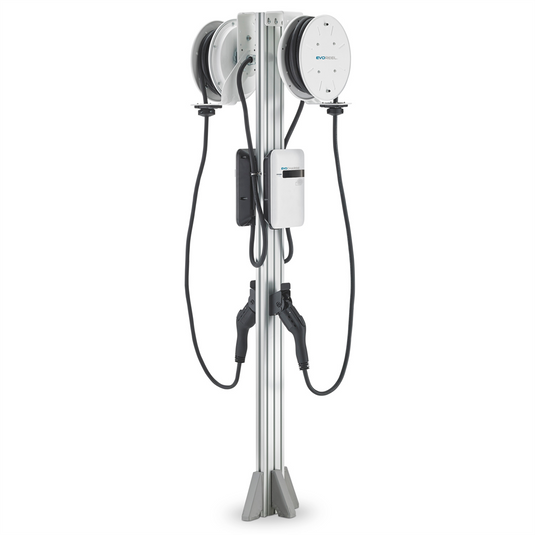

iEVSE Plus WiFi & 4G enabled electric vehicle charging station; Dual Port Pedestal-mount with 6' pedestal; 22' EVOREELs & 3' interconnect cable

Features and Benefits:�Compatibility - Compatible with all Electric Vehicles and Plug-in Hybrid Electric Vehicles sold in the United States and Canada; including Tesla (requires adapter)Connector / EVSE LEVSEl - SAE J1772�AC LEVSEl 2Max Output Rating - 30A�7.2 kW Maximum Output ‐ For use with dedicated 40A (or greater) Supply CircuitAlternate Adjustable Output Settings24A�5.76 kW Maximum Output ‐ For use with 30A Circuit Rating16A 3.84 kW Maximum Output ‐ For use with 20A Circuit RatingElectrical Circuit / Input Power Requirements - 208-240VAC; 50/60 Hz.; Single Phase�Circuit Requirement: Dedicated�Branch Breaker: Double pole�Circuit Conductors: Line 1; Line 2; Earth GroundInput Power Connection - HardwireOperational Ratings - NEMA 4; Indoor/Outdoor Rated�Temp: -22?F to 122?F (-30?C to 50?C)�Humidity: 95% RHMounting: Two chargers and 2 EvoReels on a 6ft pedestalCable Management - Standard Connector; Cable Holster; EVOREEL and 6 ft. pedestal Dimensions -EVSE: 11.0 x 7.5 x 3.2 inches (28.0 x 19.0 x 8.1 cm)EVOREEL 13.8 X 12.0 X 9.2 inches (35.1 x 30.1 x 23.4 cm)Pedestal 6 ft. (1.8 m) tallDisplay & Indicators - LED Charge Status Indicators (Power/Ready; Charging; Fault)Standards & Compliance - Charging Station: UL/cUL Listed�SAE J1772; UL 2594; UL 355; CSAThe EvoCharge iEVSE Plus electric vehicle charging station has a modern compact design with robust construction for maximum durability. The EvoReel is self-retracting and locking; has a convenient design for the clean; safe management of the charging cable and comes with a universal mounting bracket for wall; ceiling; or pedestal mounting. The 6 foot pedestal is made of high-strength aluminum suitable for single or dual station mounting with EvoReels.The EvoCharge iEVSE Plus is OCPP 1.6 WiFi enabled to support access control; data collection; and demand response. It also includes 4G-LTE cellular; an RFID card reader and Local Load Management capability.
