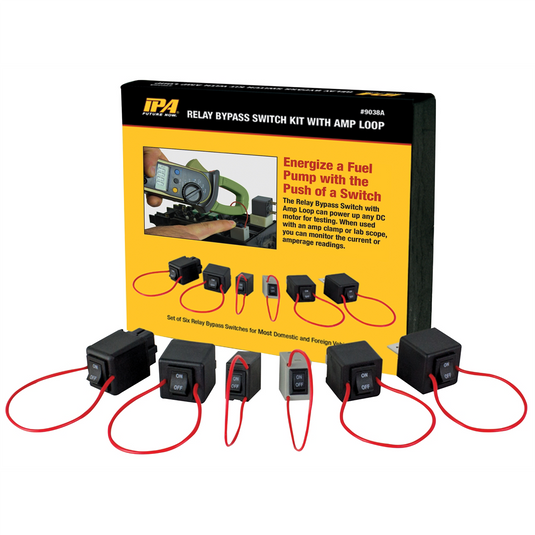

Innovative Products Of America Relay Bypass Switch Master Kit w/ Amp Loop

Features and Benefits:

• Controls relay circuit independent of ""key on"" systems
• Use in conjunction with clamp-on Amp Probes and Lab Scopes
• Run fuel pumps; fan motors; etc. with the push of a switch
• Operating range: Up to 20 amp continuous; 30 amp surge (12V)
• Covers most makes and models

The Relay Bypass Switch with Amp Loop can energize any relay powering a DC motor for testing. It also makes DC motor actuation and current monitoring easy. By attaching an Amp Clamp or Lab Scope; you can monitor the current or amperage readings; allowing the technician to judge the health of the electric motor. If a motor is drawing more current than specified; or if the current load is inconsistent during operation; the motor is suspect and should be replaced. Use the Relay Bypass to energize a DC motor; i.e.; fuel pump; cooling fan; blower motor; window motor; or any motor actuated by a relay.The bypass feature of the Bypass Switch with Amp Loop simplifies fuel injection testing. To energize the fuel pump; install the Bypass Switch in place of the vehicle's fuel pump relay and simply push it to the “on in.; position. This eliminates the need for “key-on/key-off in.; systems.
