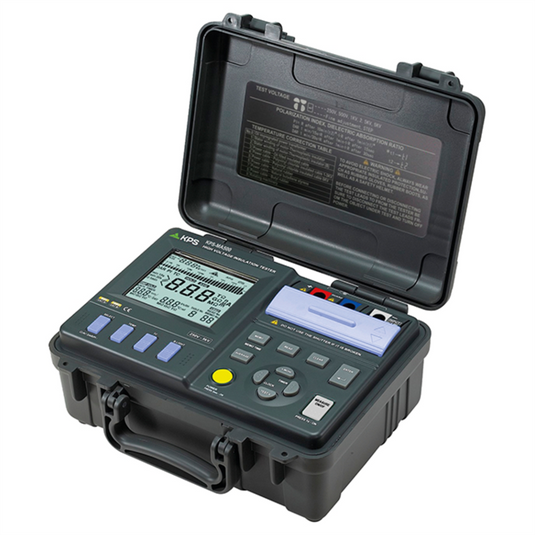

KPS by Power Probe KPS MA500 Insulation Tester

Features and Benefits:

• The MA500 is a specialized insulation resistance tester designed for precise and reliable measurements. It offers a range of features to support insulation testing in various applications. The device provides DC voltage insulation tests at 250V; 500V; 1000V; 2.5kV; and 5kV; ensuring accurate and comprehensive evaluation of insulation performance. It includes data logging capability; allowing users to conveniently record and analyze test results over time. The MA500 also features PI/DAR/PASS functions; enabling polarization index; dielectric absorption ratio; and pass/fail analysis for advanced insulation assessment. With its USB connectivity; data can be easily transferred for further analysis or reporting. The device is rated under safety categories CAT III 1000V and CAT IV 600V; ensuring safe and reliable operation in various electrical environments.



DC voltage insulation tests at 250V; 500V; 1000V; 2.5kV; and 5kV; Data logging capability; PI/DAR/PASS functions;USB connectivity for easy data transfer; CAT III 1000V CAT IV 600V
