Launch Tech USA X-431 ADAS Mobile Deluxe Configuration

Features and Benefits:

• Start to calibrate in seconds; no more tedious work of disassembly and installation
• Fully foldable design including completely flat folded base; close-fitting foldable arms and foldable crank handle
• Multi-functional base integrates 360°rotating wheels; wheel locks and fine-tuning height-adjustment to adapt to uneven ground
• Equilateral triangle design of the base ensures a stable frame
• Digital distance laser shows the cross-bar height and make sure it is equal to the standard value precisely
• step by step tutorial
• Five line laser and fine-tuning switch help to easy center the device and parallel to the vehicle and offer high precision calibrating
• Special small target design makes it convenient to carry and store
• 23-style manufacturer standard targets provide one-stop calibration service
• Compatible with AVM/ RCW/ BSD Targets of Launch ADAS PRO
• Quick access to ADAS calibration by step-by-step tutorial graphics on LAUNCH X431 diagnostic tools

Launch X431 ADAS Mobile is a portable ADAS calibration tool for calibrating ADAS system and ideal for repair business to target new revenue stream. And the unique fully foldable design can minimize the transporting risk; speed up the setup procedure and calibrate in various place. Moreover the features with 23-style manufacturer standard targets and advanced ADAS software Launch X431 ADAS Mobile offer the one-stop calibration service.

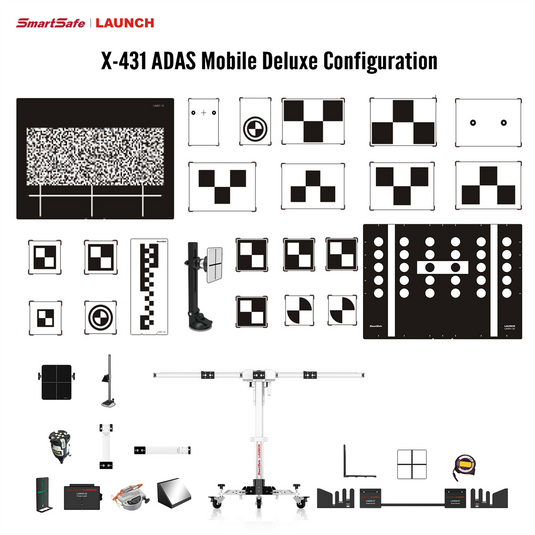

Includes:

• X-431 ADAS Mobile Main Frame
• Five-line Laser Device LAM09-01
• L -shaped Positioning Bracket LAM09-05
• Plumb Line LAM09-06
• Laser Reflector LAM09-03
• Cross Laser Module LAM09-02
• Auxiliary Mirror LAM09-04
• Target Storage Bracket LAM09-07
• Target Extension Rod I LAM09-08
• Target Extension Rod II LAM09-09
• Tape
• Cross Sticker
• LDW Targets - LAM01-02; LAC09-01; LAM01-01; LAM01-04-L; LAM01-04-R; LAM01-06-1; LAM01-06-2; LAM01-06-3; LAM01-09; LAM01-10; LAM01-12-L; LAM01-12-R; LAM01-15; LAM01-16-L; LAM01-16-R; LAM01-17; LAM01-20; LAC01-13 ; LAM01-18-L ; LAM01-18-L ; LAM01-19-L ; LAM01-19-R
• ACC Reflector LAM05-02
• Corner Reflector LAC05-03
