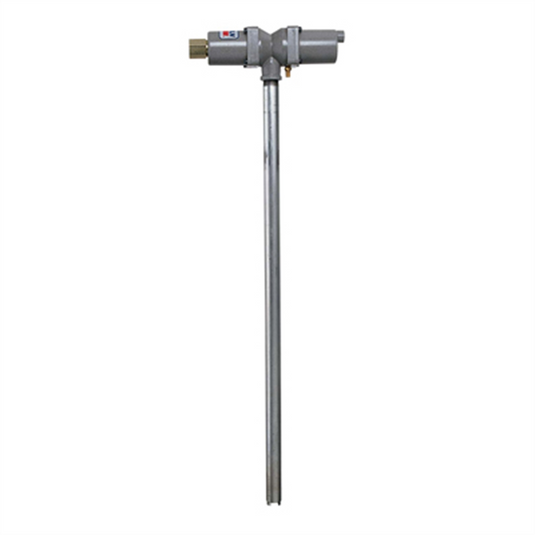

Lincoln Lubrication Air Operated Single Acting Oil Pump
Lincoln Lubrication

Lincoln Lubrication Air Operated Single Acting Oil Pump

SKU: LIN4475

$699.99
$699.99
Sale Sold out
/
This is a pre order item. We will ship it when it comes in stock.

Featuresand Benefits:

  • Operation:  Pneumatic fluid delivery stroke; spring return stroke
  • Material outlet:  3/8"" or 1/2' NPTF
  • Attachment:  2"" bung; adj. for 55 & 16 gallon drums; bench & portable tanks
  • Effective pump ratio:  Approximately 0.7:1 to 0.8:1 depending on inlet air pressure
  • Inlet air pressure; Max:  120 psi (8.31 bar) / Min: 20 psig (1.4 bar)

Combine the pump with hoses; reels; dispense valves and other accessories for complete; low cost systems to meet specific vehicle service fluid dispensing needs.  The Model 4475 pump is a reciprocating-piston; low-pressure single action pump. Air powers the pump’s piston on the dispensing; or working; stroke. An internal spring returns the piston and resets it for the working stroke. It pumps continuously when the dispensing (fluid outlet) valve is open and 20-120 psig air is supplied to the pump.
