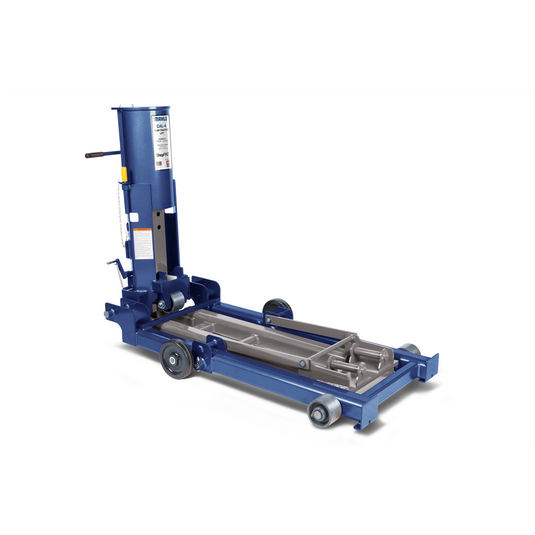

MAHLE Service Solutions CAL-4 Four Ton Air Lift

Features and Benefits:

• Allows for safe lifting and support of drive axles
• Change all tires with a single jack movement
• Eliminates the need to go under the vehicle to place Jacks or Support Stands
• Downstops and pin increments every 3""
• Low starting height to clear low hanging suspension
• 100% air operation
• Made in the USA
• Capacity 8;000 lb (3628 kg)
• Stroke 17 in (43.2 cm)
• Minimum Start Height 7.9 in (20.1 cm)
• Maximum Lift Height 23.5 in (59.7 cm)
• Power Air
• Forward Reach (CL to CL) 44 in (112 cm)
• Overall Length 70.25 in (178.4 cm)
• Overall Height 50.75 in (129.5 cm)
• Shipping Weight 700 lb (317.5 kg)



ShopPRO vehicle lifts are 100% air operated and provide the user with up to 20;000 lbs of vehicle lifting capacity; and are highly maneuverable and easy to set up. A two-stage air valve provides controlled lifting and lowering speed.
