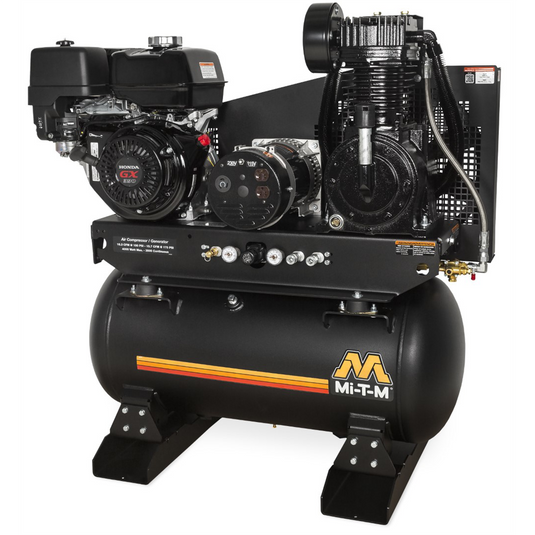

Mi-T-M 30-Gallon Two Stage Gasoline Combination Air Compressor/Generator

Features and Benefits:

• Compressor Pump:Cast iron compressor pump � Splash lubricated � Stainless-steel braided discharge hose � Large canister intake filter � Oil level sight indicator
• Generator:Brushless alternator � Total harmonic distortion (THD) less than 6% � 100% copper windings � (2) NEMA 5-20R 120V; 20A and (1) NEMA L6-20R 240V; 20A receptacles
• Frame:Powder coated ASME receiver tank � 3/16-inch base plate to reduce vibration � Powder coated two-piece belt guard:Components:Regulator and two gauges for tank and outlet pressure � Manual drain valves for proper maintenance � 16 �-inch fly wheel � Quality pilot valve unloader
• CFM @ PSI:16.4 @ 90
• CFM @ PSI:15.7 @ 175
• Alternator Wattage: Max. Output:4000 watts
• Alternator Wattage: Cont. with Comp. On-Load:2300 watts
• Alternator Wattage: Cont. with Comp. Off-Load:3500 watts
• Displacement/ Engine:389cc Honda GX390 OHV
• Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
• Equipped with 150-PSI maximum rated regulator.
• 49 state engine. Not for sale in California.
• Equipped with electric start ‐ battery; box and cables not included.nstallation



The 30-gallon two stage air compressor/ generators tie two units into one for optimal power remodelers; contractors and DIYers appreciate.
