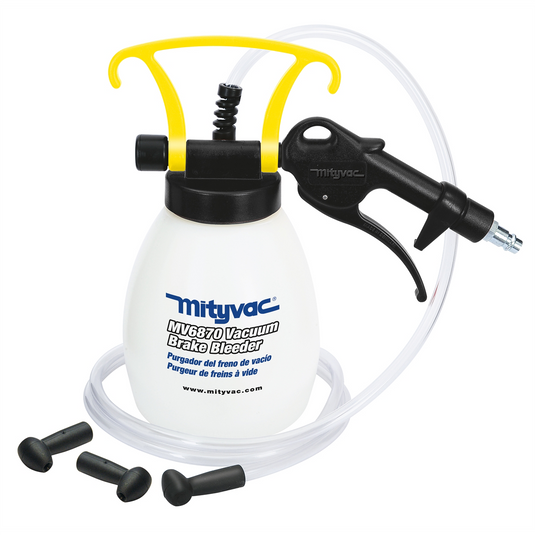

Mityvac MV6870 1.3 Quart Vacuum Brake Bleeder

Features and Benefits:

• Compact 1.3 qt. (1.2 l) capacity reservoir
• Comfortable lever-action throttle with lock-on latch
• Durable; molded composite handle can take heavy abuse
• Automatic shutoff prevents overfill
• Integrated hanging hook doubles as a hose wrap for convenient storage
• 4 ft. (1.2 m) long bleed hose with molded support
• Universal bleed screw adapter conforms to most common bleed screw sizes
• Integrated muffler for quiet operation
• Includes two replacement bleed screw adapters



Mityvacs MV6870 offers high quality and performance in a robust compact design. It features a 1.3 qt. reservoir and powerful compressed-air-operated venturi that quickly draws out fluid and air from hydraulic brake and clutch systems. With the MV6870; one person can perform quick; clean vacuum brake and clutch bleeding.

Specifications

• Bleeder reservoir capacity: 1.3 qt. (1.2 l)
• Working pressure: 60-150 psi (4.1-10.3 bar)
• Vacuum @ 90 psi (6.2 bar): 26 in. Hg (88 kPa)
• Air consumption @ 90 psi (6.2 bar): 7.3 cfm (3.4 l/s)
• Flow rate @ 60 psi (4.1 bar): 22 oz/min (650 ml/min)
• Flow rate @ 90 psi (6.2 bar): 37 oz/min (1095 ml/min)
• Flow rate @ 150 psi (10.3 bar): 32 oz/min (945 ml/min)
• Inlet thread size: 1/4 in. NPT
• Packaged weight: 1.7 lbs. (0.77 kg)
• Size (wide x deep x tall): 11 x 5.5 x 9 in. (280 x 140 x 230 mm)

Includes

• 1.3 qt. (1.2 l) fluid reservoir
• Reservoir lid with integrated venturi vacuum and muffler
• 4 ft. (1.2 m) bleed hose with molded support
• 2 bleed screw adapter replacements
• Hanging hook
• User manual (English/French/Spanish/German)
