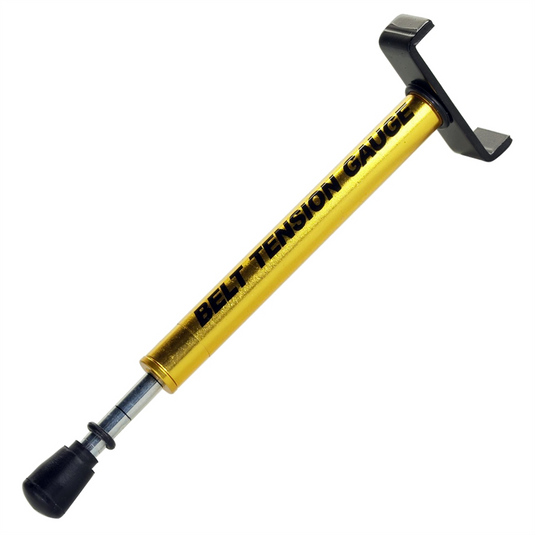

OTC Belt Tension Gauge

Features and Benefits:

• This easy to use and read tool allows for accurate belt tension to be set after belt replacement; adjustment; or wheel service
• Use on secondary drive belts with a 10 lb. spec.
• Use after belt replacement adjustment or wheel service
• Position the small O-ring over the 10 lb. mark.
• Position the U-shaped belt cradle against the bottom of the belt at a 90 degree angle and locate the large O-ring to a reference point; record reading.

This easy to use and read tool allows for accurate belt tension to be set after belt replacement; adjustment; or wheel service. Use on secondary drive belts with a 10 lb. spec. Instructions; 1. Position the small O-ring over the 10 lb. mark. 2. Position the U-shaped belt cradle against the bottom of the belt at a 90 degree angle and locate the large O-ring to a reference point; record reading. 3. Push upward on the rubber bumper until the small O-ring touches the bottom of the tool body. Re-align the large O-ring to the reference point; difference in the reading is the belt deflection (refer to service manual for spec.).
