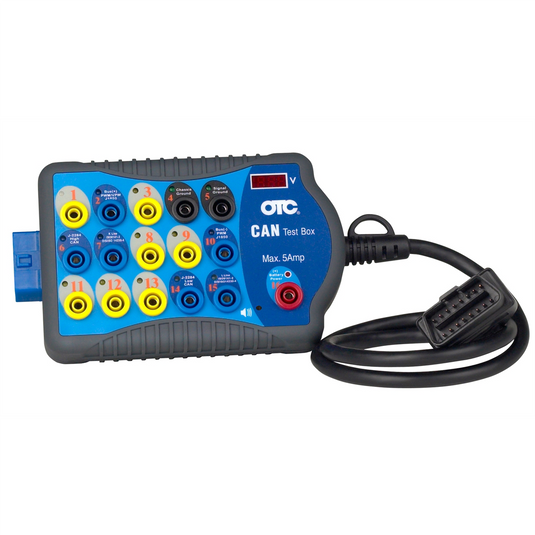

OTC CAN Test Box

Features and Benefits:

• Connects between Diagnostic Link Connector (DLC) and scan tool
• Alarm warning when voltage drops below 11.6v or rises above 15.2v
• Connect leads for increased diagnosis; analysis; and monitoring
• LEDs at pin-out display signal detection; Flashing LEDs for ECU activity
• Check power and ground circuits

Use this tool for diagnosing electrical faults and CAN bus line activity. Check active protocol lines; or connect a multimeter or oscilloscope for detailed signal analysis.

Useful Functions:
• Verify ECU activity; LEDs at pin-out display signal detection; Flashing LEDs for ECU activity
• Monitoring of OBDII data lines
• Probe lines with scope or multimeter for detailed signal information
• Check and monitor battery voltage; Continuous numeric display or voltage
