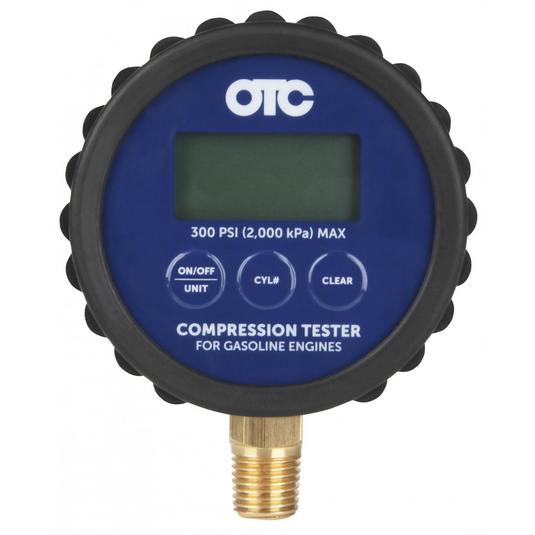

OTC Digital Compression Gauge Head and Boot

Features and Benefits:

• Measure; record; and playback compression readings on 1 to 12 cylinders.
• The 2-1/2"" gauge features a backlit LCD display and rugged protective rubber boot.
• Measurement range is 3-300 psi; can also be displayed in bar; kPa; and kg/c units of measure.
• Powered by a 9V battery with low power indicator and auto power off. Battery not included.

The OTC 5606-DGH digital compression gauge head can replace analog gauges to provide advanced features; including measure; record and playback of compression readings on up to 12 cylinders; for quicker testing and diagnosis. The gauge head can directly replace any 2-1/2"" analog gauge with a 1/4"" NPT male thread. Upgrades current compression gauge with exact; numeric measurements. The digital gauge is easy to read and can display pressures in PSI; kPA; bar and kg/c. A convenient push-button side release valve relieves pressure for repeat testing. Upgrade your 5605 or 5606 compression tester with a digital gauge for easier; faster compression readings. Also fits other compression testers with 14mm thread.
