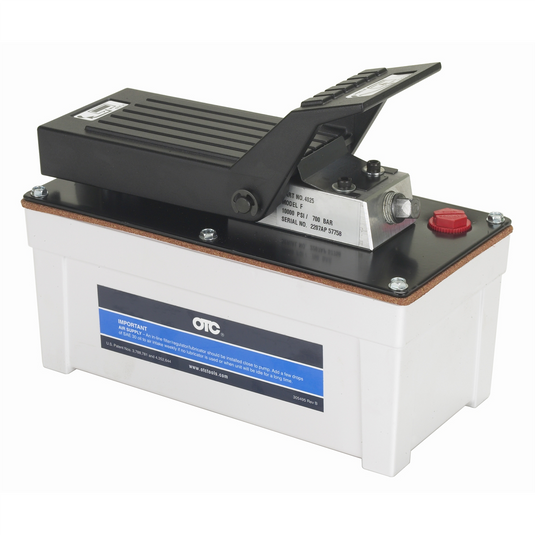

OTC Hand/Foot Operated 10000 PSI Air/Hydraulic Pump in Metal Reservoir

Features and Benefits:

• OTC's air powered hydraulic pump is an ideal all-around power source; for use with a variety of rams; presses; & hydraulic pullers; that develops 10;000 PSI hydraulic pressure at 100 PSI air pressure
• Powerful unit features a two-stage release mechanism; internal relief valve; and a 3/8 inch female NPT oil port for convenient hookup to a wide variety of hydraulic powered equipment
• Onboard capacity of 98 cubic inches of usable oil; in the rugged metal reservoir; ensures you have the supply needed to power a wide range of equipment
• Convenient foot pedal design allows fine control of pump while keeping both hands free
• Two stage release mechanism gives fast or metered ram return while reducing hydraulic shock
• Backed by OTC's Lifetime Marathon Warranty



With shop air as the energy source; thesepumps have the power and oil capacity (80 cu.in. usable oil) to drive even the large 55-tonrams. They are ideal all-around power sourcesfor dozens of body; frame; and alignmentapplications. They can be used with a variety oframs; presses; and hydraulic pullers operatingat up to 10;000 PSI. An internal relief valveprotects the hydraulic components regardlessof hydraulic pressure. In addition; a two-stagerelease mechanism gives fast or meteredram return while reducing hydraulic shock. Inaddition to all the features and performancecharacteristics of the 4020/4025; the 4021 isequipped with a 15 ft. remote control cord. The4022 is equipped with a 2-gal. reservoir. Thesepumps require 9 cfm at 100 PSI air pressure atthe pump.
