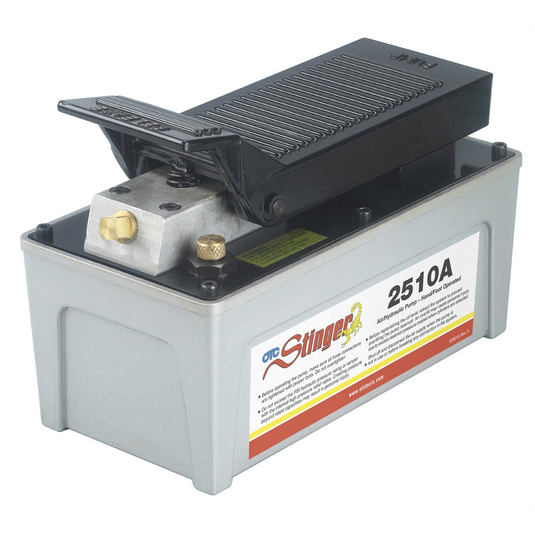

OTC Hand/Foot Operated Air/Hydraulic Pump

Features and Benefits:

• Ideal all-around power source develops 10;000 PSI at 100 PSI air. 2-stage release mechanism; internal relief valve. Pump; hold; or release load with pedal control.
• 98 cu. in. of useable oil.
• 1/4"" NPT Air Inlet.
• 3/8"" NPT oil port.
• Not Included Related Product: OTC2510A is part of OTC6575-3 Hub Grappler Hydraulic Kit
• Not Included Related Product: OTC2510A is part of OTC6575H Hydraulic Hub Grappler Kit
• Not Included Related Product: OTC2510A is part of OTC4247 Hendrickson Suspension Bushing Master Kit with Pump
• Not Included Related Product: OTC2510A is part of OTC4275 Hendrickson Front Suspension Bushing Master Tool Set
• Not Included Related Product: OTC2510A is part of OTC4245 Freightliner Rear Suspension Tool with pump



With shop air as the energy source; OTC's 2510A 'Stinger' Air/Hydraulic pump has the power and oil capacity (98 cubic inches of useable oil) to drive even the large 55-ton rams. With high capacity; quality materials; and robust construction; this unit is an ideal all-around power source for dozens of body; frame; and alignment applications. It can be used with a variety of rams; presses; and hydraulic pullers operating at up to 10;000 PSI. An internal relief valve protects the hydraulic components regardless of hydraulic pressure. In addition; a two-stage release mechanism gives fast or metered ram return while reducing hydraulic shock. Pump requires 9 cfm at 100 PSI air pressure (at the pump). Value is at the core of the OTC tool and equipment portfolio. For a simple repair or the most complex drivability concern; these award-winning tools universally solve problems faster; and at better value; than any other product line available. Whether it�s a specialty tool or unique piece of service equipment; OTC provides top solutions to modern automotive service challenges while increasing technician productivity and shop profits.
