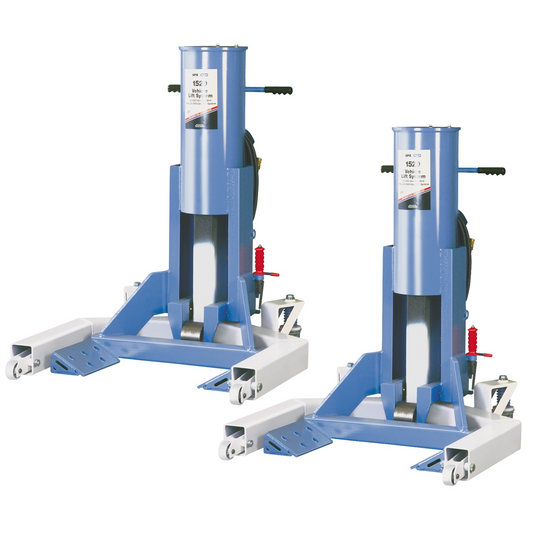

OTC Mobile Vehicle Lift System

Features and Benefits:

• Mobile; tandem system is air-operated to handle your class 7 and 8 tractor lifting needs.
• No need to waste time re-blocking and making additional lifts for the clearance you need for under-vehicle service.
• Roll the system to the vehicle anywhere in the shop or outside on a level surface.
• Unique design provides lift from the tires; not the frame or axle members.
• Ideal for situations where limited ground clearance or a lack of clear access complicates lifting.
• Single controller operates both sides of the system for a smooth; level lift up to two full feet from the bottom of the tires to the ground.
• Units can double as support stands when retention pin is inserted.
• Covered by OTC Lifetime Marathon Warranty®.
• Specifications:
• Capacity: 10-tons (20;000 lbs.) (pair)
• Air pressure: 150 PSI
• Lifting range: 0""-24""
• Saddle width: 19-1/2"" to 24-1/2"" dia. rim sizes
• Height: 53-1/4""
• Width: 41-1/2""
• Length: 39-1/2""
