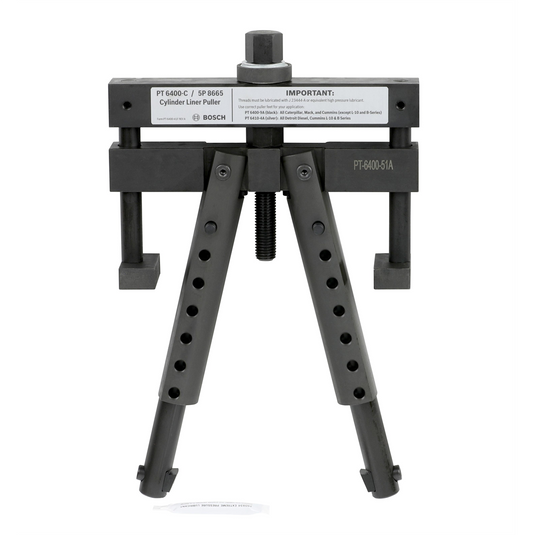

OTC Universal Cylinder Liner Puller

Features and Benefits:

• Quickly removes heavy-duty cylinder liners
• Similar to Porta-Tool OE tool number : PT-6400-C
• Cylinder bore diameter: 3-7/8"" to 6-1/4""
• Liner wall thickness: 0.273"" min
• Sleeve depth: Up to 15""
• Vehicle applications:Mack;Volvo;Detroit;International;Cummins (except L10 and C series);Cat Engines 3176; 3196; 3300 Series; 3400 Series; 3500 Series; C10; C12; C15; C16;Maxxforce DT; DT360; DTA360; DTA466; DT466; DT530 (PLN); DT466E; DT530E; DT570; HT570



Designed to be used with an impact wrench for quick cylinder liner removal. The spring loaded puller arms automatically adjust to fit the liner for a fast set-up time. The low profile of this tool allows work in areas where space is limited. The tool accommodates bore diameters from 3-7/8"" to 6-1/4""; sleeve depths to 15""; and liner wall thickness of 0.273"" min. Drive screw hex size; 1-1/8"". Works on select Mack; Volvo; Detroit Diesel; International; Cummins; Navistar and other Caterpillar engines. Similar to Porta-Tool OE tool number PT-6400-C.
