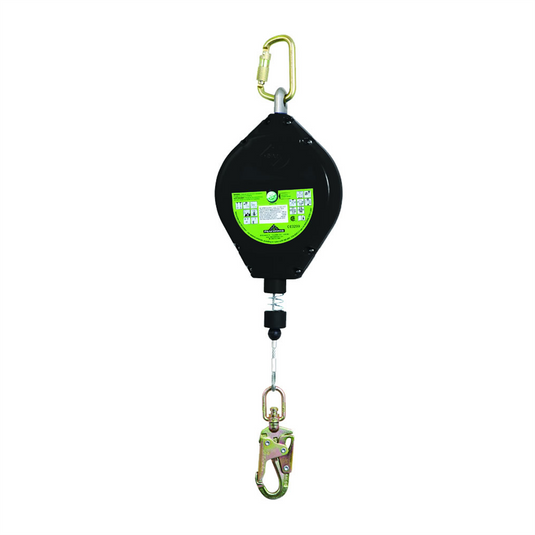

PeakWorks PeakWorks - Self Retracting Lifeline Device - Galvanized Steel Cable; Snap Hook; 60 Ft - Leading Edge

Features and Benefits:

• Color: Black
• Capacity (lb.): 300 lb
• Anchor Hook Material: Steel
• Anchor Hook Type: Snap Hook
• Body Hook Type: Carabiner
• Average Arrest Force: 765 lbf (3.4kN)
• Class Type: B
• Gate Opening (in.): 0.75""
• Housing Material: Aluminum
• Leading Edge: Yes
• Leg Type: Single
• Length (ft.): 18'
• Maximum Total Arrest Distance - Non-Leading Edge application (in.): 54""
• Maximum Total Arrest Distance - Non-Leading Edge application (in.): 54""
• Minimum Fall Clearance - Non-Leading Edge application (ft.): 8.5'
• Minimum Fall Clearance - Leading Edge application (ft.): 13'
• Minimum set back distance from edge - Leading Edge application (in.): 20""
• Webbing/Cable Width (in.): 3/16""
• Certification: CSA Z259.2.2-98 Type 2|LE certified|OSHA|ANSI Z359.14-2014; Class B
• Lifeline Material: Galvanized Steel
• Rescue and Recover - SRL-R: No
• Special Features: Lightweight
• SELF-RETRACTING DEVICE LE (SRD LE)�CLASS A�CABLE Single SRL-LE. SRL's that are Leading Edge certified can be used in both overhead and Leading-Edge applications. What is a Leading Edge? - A leading edge can be described as any sharp edge commonly found on a worksite; with which a cable or webbing connection could come into direct contact during a fall. There is considerable force at play during a fall; and a Non-Leading-Edge SRL (cable or webbing) may cut or snap at a sharp edge during the fall
• Leading Edge (LE) self-retracting lifelines are designed to protect the worker when operating near an edge and where a fall hazard exists that could cause the lifeline to come into contact with the edge; for example when working over structural steel or in high-rise concrete buildings under construction with open flooring. An SRL Leading Edge (LE) device is an SRL that has enhanced design features for use in leading edge applications
• it provides additional protection against the sharp or abrasive surfaces found on many construction sites and can withstand a fall over a leading edge.
• Tested and approved for foot level tie-off.
• Carabiner hook included for attachment to the anchor point.
• Lightweight Aluminum housing. 3/16"" (5mm) galvanized cable; 50 ft. working length. LE minimum fall clearance: 13 ft. (4m). Hook opening: 0.75” Snap Hook. Weight Capacity: 300 lbs.
• Maximum total arrest distance: 24 in. (0.61m) non leading-edge application. Average arrest force: 765 lbf (3.4kN). Minimum setback distance: 16 in. (0.4m). Certified to ANSI 2359.14 and CSA Z259.2.1.



At PeakWorks; we design and manufacture superior fall protection products that are easy to use andcomfortable to wear. Backed by leading industry experts; PeakWorks is dedicated to uncompromising quality to keep you working safely at any height. Tackle the job comfortably and confidently with PeakWorks innovative fall protection solutions.
