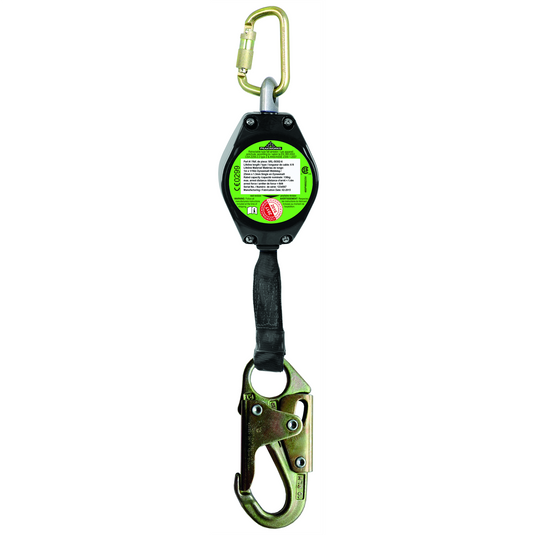

PeakWorks PeakWorks - Self Retracting Lifeline with Webbing; Snap Hook - 6 FT - Leading Edge

Features and Benefits:

• Color: Black
• Capacity (lb.): 300 lb
• Anchor Hook Material: Steel
• Anchor Hook Type: Snap Hook
• Body Hook Type: Carabiner
• Average Arrest Force: 765 lbf (3.4kN)
• Class Type: A
• Gate Opening (in.): 0.75""
• Housing Material: Aluminum
• Leading Edge: Yes
• Leg Type: Single
• Length (ft.): 6'
• Maximum Total Arrest Distance - Non-Leading Edge application (in.): 24""
• Maximum Total Arrest Distance - Non-Leading Edge application (in.): 24""
• Minimum Fall Clearance - Non-Leading Edge application (ft.): 6'
• Minimum Fall Clearance - Leading Edge application (ft.): 13'
• Minimum set back distance from edge - Leading Edge application (in.): 12""
• Webbing/Cable Width (in.): 1""
• Certification: CSA Z259.2.2-98 Type 2|LE certified|ANSI Z359.14-2014; Class A
• Lifeline Material: Dyneema®
• Rescue and Recover - SRL-R: No
• Special Features: Sewn-in Indicator|Lightweight
• SELF-RETRACTING DEVICE LE (SRD LE)�CLASS A� Single Leg Webbing SRL-LE. SRL's that are Leading Edge certified can be used in both overhead and Leading-Edge applications. What is a Leading Edge? - A leading edge can be described as any sharp edge commonly found on a worksite; with which a cable or webbing connection could come into direct contact during a fall. There is considerable force at play during a fall; and a non-Leading-Edge SRL (cable or webbing) may cut or snap at a sharp edge during the fall
• Leading Edge (LE) self-retracting lifelines are designed to protect the worker when operating near an edge and where a fall hazard exists that could cause the lifeline to come into contact with the edge; for example when working over structural steel or in high-rise concrete buildings under construction with open flooring. An SRL Leading Edge (LE) device is an SRL that has enhanced design features for use in leading edge applications
• it provides additional protection against the sharp or abrasive surfaces found on many construction sites and can withstand a fall over a leading edge.
• Tested and approved for foot level tie-off.
• Dyneema® webbing lifeline has been sharp edge tested over a .005"" radius sharp edge. PeakWorks webbing SRL�s are manufactured using special 0.1"" (2.5 mm) thick; 1"" (25 mm) wide Dyneema® Core materials; giving them one of the highest performances of this type of fiber in the world. The webbing features a sewn-in indicator on the lifeline itself for maximum safety.
• Lightweight Aluminum housing. 1"" Webbing; 6 ft. working length. LE minimum fall clearance: 13 ft. (4m). Hook opening: 0.75” Snap Hook. Weight Capacity: 300 lbs.
• Class A rating means the fall distance is less than 2 ft. (0.6m) or less when connected overhead (non-LE application). Leading edge minimum fall clearance of 13 ft. (4m) required.



At PeakWorks; we design and manufacture superior fall protection products that are easy to use andcomfortable to wear. Backed by leading industry experts; PeakWorks is dedicated to uncompromising quality to keep you working safely at any height. Tackle the job comfortably and confidently with PeakWorks innovative fall protection solutions.
