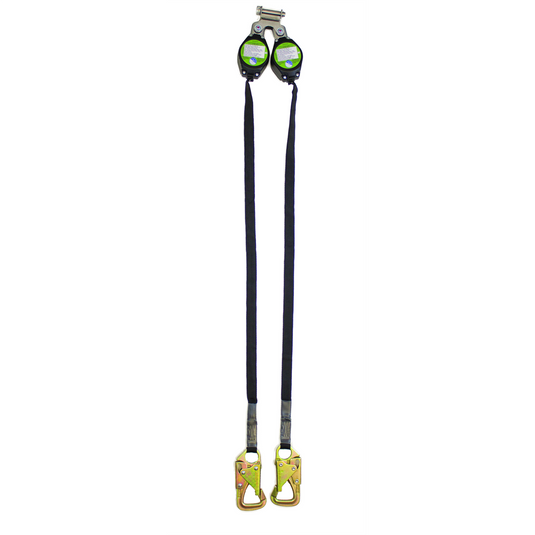

PeakWorks PeakWorks - Tie Back Self Retracting Lifeline Device - Dual

Features and Benefits:

• Color: Hi-Viz Green/Black
• Capacity (lb.): 300 lb
• Anchor Hook Material: Steel
• Anchor Hook Type: Tie-Back Snap Hook
• Body Hook Type: Connection Pin
• Average Arrest Force: 765 lbf (3.4kN)
• Class Type: A
• Gate Opening (in.): 0.83""
• Housing Material: Aluminum
• Leading Edge: Yes
• Leg Type: Twin
• Length (ft.): 9'
• Maximum Total Arrest Distance - Non-Leading Edge application (in.): 24""
• Maximum Total Arrest Distance - Non-Leading Edge application (in.): 24""
• Minimum Fall Clearance - Non-Leading Edge application (ft.): 6'
• Minimum Fall Clearance - Leading Edge application (ft.): 13'
• Minimum set back distance from edge - Leading Edge application (in.): 12""
• Webbing/Cable Width (in.): 0.77""
• Certification: OSHA|LE certified|ANSI Z359.14-2014; Class A
• Lifeline Material: Dyneema®
• Rescue and Recover - SRL-R: No
• Special Features: Sewn-in Indicator|Lightweight
• Tie-back is an all-in-one; self-retracting lifeline; and anchorage connector; thus reducing the amount of equipment required on the job site and making it a cost-effective alternative. It allows the unit to attach directly to a compatible structural anchor by wrapping around the structure to tie-back to itself.
• Approved for use in vertical and horizontal applications.
• LE minimum fall clearance: 13 ft. (4m). Maximum total arrest distance: 24 in. (0.61m) non-leading-edge application. Average arrest force: 765 lbf (3.4kN). LE minimum setback distance: 12 in. (0.31 m).
• Working Length: 9 ft. Weight Capacity: 300 Lbs.
• Dual tie-off configuration.



At PeakWorks; we design and manufacture superior fall protection products that are easy to use andcomfortable to wear. Backed by leading industry experts; PeakWorks is dedicated to uncompromising quality to keep you working safely at any height. Tackle the job comfortably and confidently with PeakWorks innovative fall protection solutions.
