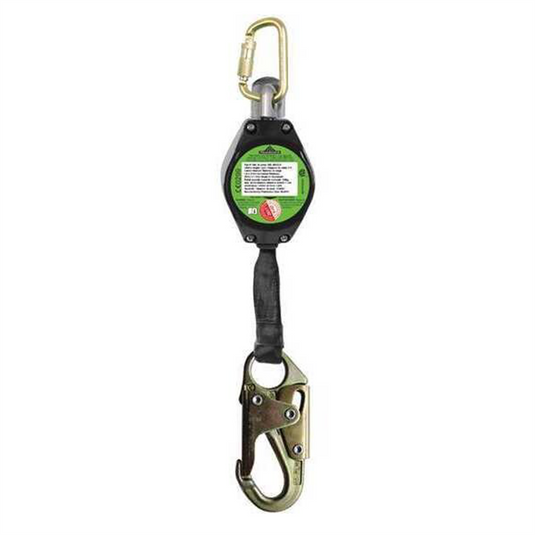

PeakWorks PeakWorks - Tie Back Self Retracting Lifeline Device - Single - Leading Edge

Features and Benefits:

• Color: Hi-Viz Green/Black
• Capacity (lb.): 300 lb
• Anchor Hook Material: Steel
• Anchor Hook Type: Snap Hook
• Body Hook Type: Double Locking Carbiner
• Average Arrest Force: 765 lbf (3.4kN)
• Class Type: A
• Gate Opening (in.): 0.75""
• Housing Material: Aluminum
• Leading Edge: Yes
• Leg Type: Single
• Length (ft.): 6'
• Maximum Total Arrest Distance - Non-Leading Edge application (in.): 24""
• Maximum Total Arrest Distance - Non-Leading Edge application (in.): 24""
• Minimum Fall Clearance - Non-Leading Edge application (ft.): 6'
• Minimum Fall Clearance - Leading Edge application (ft.): 13'
• Minimum set back distance from edge - Leading Edge application (in.): 12""
• Webbing/Cable Width (in.): 3/4""
• Certification: CSA Z259.2.2-98 Type 2|LE certified|ANSI Z359.14-2014; Class A|OSHA
• Lifeline Material: Dyneema®
• Rescue and Recover - SRL-R: No
• Special Features: Sewn-in Indicator|Lightweight
• SELF-RETRACTING DEVICE LE (SRD LE)�CLASS A Single SRL-LE. SRL's that are Leading Edge certified can be used in both overhead and Leading-Edge applications. What is a Leading Edge? - A leading edge can be described as any sharp edge commonly found on a worksite; with which a cable or webbing connection could come into direct contact during a fall. There is considerable force at play during a fall; and a Non-Leading-Edge SRL (cable or webbing) may cut or snap at a sharp edge during the fall
• Leading Edge (LE) self-retracting lifelines are designed to protect the worker when operating near an edge and where a fall hazard exists that could cause the lifeline to come into contact with the edge; for example when working over structural steel or in high-rise concrete buildings under construction with open flooring. An SRL Leading Edge (LE) device is an SRL that has enhanced design features for use in leading edge applications
• it provides additional protection against the sharp or abrasive surfaces found on many construction sites and can withstand a fall over a leading edge.
• 3/4” Webbing; 6ft. working length. LE minimum fall clearance: 13 ft. (4m). Aluminum housing. Unit under 2.5 lbs. in total weight. Maximum total arrest distance: 24 in. (0.61m) non-leading-edge application.
• Average arrest force: 765 lbf (3.4kN). Minimum setback distance: 12 in. (0.31 m). Foot level tie-off: Tested and approved for foot level tie-off. Operating temperatures: -22°F to 122°F (-30°C to 50°C).
• Steel snap hook with .75"" (19mm) gate opening
• different snap hook types available. Double-locking steel carabiner with 3;600 lb. gate strength included for anchor connection.
• Certified to meet OSHA; ANSI Z359.14-2014; Class A; Leading Edge and CSA Z259.2.1 standards.



At PeakWorks; we design and manufacture superior fall protection products that are easy to use andcomfortable to wear. Backed by leading industry experts; PeakWorks is dedicated to uncompromising quality to keep you working safely at any height. Tackle the job comfortably and confidently with PeakWorks innovative fall protection solutions.
