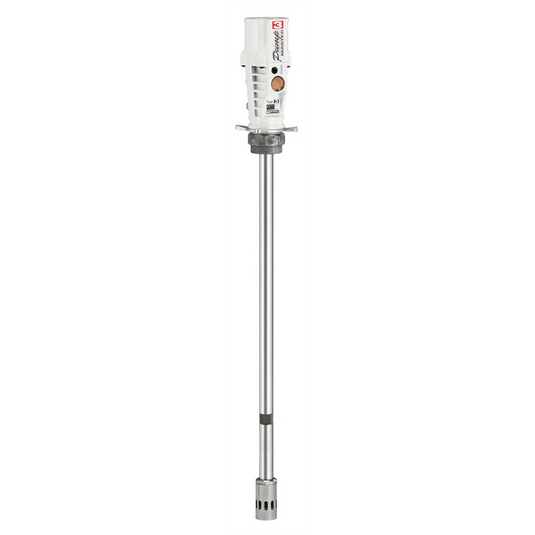

Samson 300 - PumpMaster 3 55:1 -35lb Pail Pump

Features and Benefits:

• Fluids Handled: Grease up to NLGI-2
• Markets Served: Service Shops; Agriculture; Light Industrial
• Pump Pressure Ratio: 55:1
• Continupus Duty Flow Rate: 0.7 lb/min (300 g/min)
• Maximum Free Flow Rat: 1.2 lb/min (540 g/min)
• Air Pressure Operating Range: 40 -140 psi (3-10 bar)
• Maximum Outlet Pressure: 7;700 psi (550 bar)
• Air Motor Effective Diameter: 2 3/4"" (70 mm)
• Air Motor Stroke: 1 1/2"" (33 mm)
• Air Consumption: 5.8 scfm (165 NL/min)
• Air Inlet: 1/4"" NPTF
• Fluid Outlet: 1/4"" NPTF
• Wetted Materials: Aluminium; Steel; NBR; PTFE
• Noise Level: 85 dB
• Application: 35 lb Pail; 120 lb Keg; 400 lb drum
• Simultaneous Dispense Points: 1 - No Reels
• Max. Line Length: 50' (15 m)
• Pump Description: Utility High Pressure



Light and effective double acting high pressure air operated pumps specially designed for use in small mobile and portable greasing units.Pumps are available with three different suction tube lengths: 35 lb; 120 lb and 400 lb. They include a height adjustable 2” NPT(M) bung adapter.
