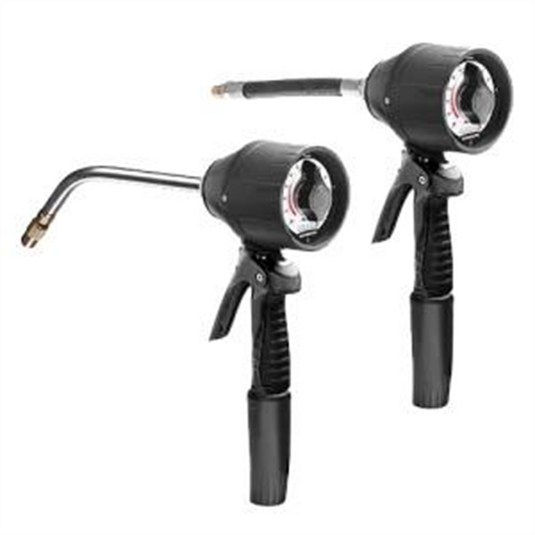

Samson 60 Degree Rigid Outlet With Quarter Turn Non-Drip Tip

Features and Benefits:

• Extensively and rigorously field tested. Reliable performance.
• No calibration required. High accuracy within a large viscosity range.
• One piece polycarbonate based integral register housing and single molded pointer knob guarantee maximum integrity of the meter against drops and impacts and provide superb protection against humidity.
• Fully mechanical register.
• Simple and easy to read dial includes 5-digit totalizer
• Very tough metal construction; the meter is ideal for intensive use and outdoor applications.
• The MC8 uses the CV11 SERIES control handle. This handle is flange coupled to eliminate the use of adapters and eliminate leaks.
• Maximum Free Flow Rate - 8 gal/min (30 l/min)
• Maximum Working Pressure - 1;450 psi (100 bar)
• Fluid Inlet - 1/2"" NPT(F)
• Fluid Outlet - 1/2"" NPT(F)
• Accuracy - +/- 0.65%
• Wetted Materials - Aluminum / Zinc alloy / Stainless steel / NBR / Brass / Steel / TPU / Polyamide



Samson mechanical metered control valves are used at the end of the hose assembly for measured dispensing of lubricants and anitfreeze solutions in tough; intensive use applications.
