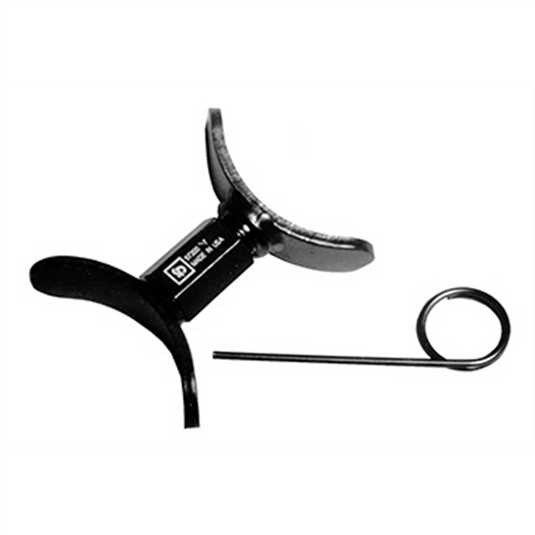

Schley Products TIMING BELT TENSIONER COMPRESSOR TOYOTA

Features and Benefits:

• This tool is placed in between the belt tensioner and the water pump pulleys
• Then; by slowly turning the tools inner nut; pressure is applied to the hydraulic tensioner pushing it into a position that allows the technician to place supplied locking pin into the hydraulic piston push rod
• Once the licking pin is in place the tensioner compressor can be removed and the timing belt placed on all appropriate pulleys
• After the belt is placed on the engine pulleys; the locking pin can be removed to return tension on the timing belt

Schley Products; Inc TIMING BELT TENSIONER COMPRESSOR TOYOTA - SCH97300.
