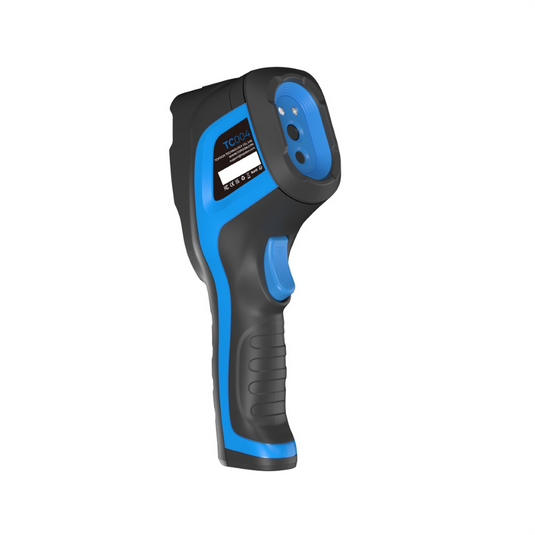

Topdon TC004 - Handheld Thermal Imaging Camera 256x192 Resolution
Topdon

Topdon TC004 - Handheld Thermal Imaging Camera 256x192 Resolution

SKU: TOPTC004

$379.99
$379.99
Sale Sold out
/
This is a pre order item. We will ship it when it comes in stock.

Features and Benefits:

  • High Resolution & Thermal SensitivityThe TC004 features a high-resolution thermal camera with a resolution of 256x192. This allows users to capture more details and say goodbye to blurry images.A high thermal sensitivity of 0.05? allows the TC004 to distinguish between tiny temperature differences.
  • Three Measurement Modes & Auto-DetectionThe TC004 has three different measurements to detect center; hot and cold spots.The automatic detection feature allows users view temperature differences more visually.
  • Wide FOVThe TC004 also features a wide 56° FOV for to easily capture more objects in view. There is also no need to adjust focal length.
  • Wide Measurement Range & AccuracyThe TC004 features a wide temperature measurement range of -20? - +350?. It can also measure temperatures with �2? accuracy for precise temperature measurements.NETD of this high-precision infrared sensor is less than 40mK; measurement accuracy is 0.1 degree; and error is less than 2%. This is to ensure the upmost accurate thermal readings.
  • PC Image Analysis and Instant ProjectionProfessional analysis software allows users to easily save and share diagnostic data on a PC. The TC004 also supports screen projection on a PC as well.
  • Extended Battery LifeA powerful integrated battery allows the TC004 to have a 12-hour runtime.
  • Built-in Fill LED LightA built-in LED light allows users to record thermal readings without an additional light source.
  • Compact and Solid DesignIP54 rated for protection against water and dust and 2m drop proof allows you to be more carefree while using the device.

    • The TC004 is a handheld thermal camera that measures a wide range of temperatures; from -20°C to 350°C (-4°F to +662°F); and offers a 12-hour runtime. The high-resolution 256*192 pixel infrared camera allows you to say goodbye to blurry images. The tool is ready for analysis with the standalone and the PC modes; enabling users to project and upload images from the TC to their PC.
