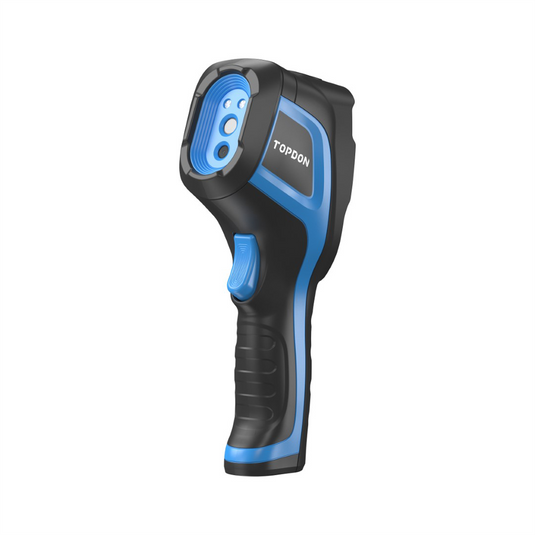

Topdon TC005 - Handheld Thermal Imaging Camera; Dual Camera; High Temp Range

Features and Benefits:

• High Resolution & Thermal SensitivityThe TC005 features a high-resolution thermal camera with a resolution of 256x192.This allows users to capture more details and say goodbye to blurry images.A high thermal sensitivity of 0.05â�� allows the TC005 to distinguish between tiny temperature differences.
• Three Measurement Modes & Auto-DetectionThe TC005 has three different measurements to detect center; hot and cold spots.The automatic detection feature allows users view temperature differences more visually.
• Wide FOVThe TC005 also features a wide 56 FOV to easily capture more objects in view. There is also no need to adjust focal length.
• Wide Measurement Range & AccuracyThe TC005 features a wide temperature measurement range of -20â�� - +550â��. It can also measure temperatures with Â�2â�� accuracy for precise temperature measurements.NETD of this high-precision infrared sensor is less than 40mK; measurement accuracy is 0.1 degree; and error is less than 2%. This is to ensure the upmost accurate thermal readings.
• Four Imaging ModesThe TC005 has four imaging modes to identify target in a timely manner.These include: Thermal Imaging mode; Dual Light mode; Visible Light mode; and Image in Image mode.
• PC Image Analysis and Instant ProjectionProfessional analysis software allows users to easily save and share diagnostic data on a PC. The TC005 also supports screen projection on a PC as well.
• Extended Battery LifeA powerful integrated battery allows the TC005 to have a 12-hour runtime.
• Built-in Fill LED LightA built-in LED light allows users to record thermal readings without an additional light source.
• Built for LastIP54 rated for protection against water and dust and 2m drop proof allows you to be more carefree while using the device.



The TC005 is a handheld thermal camera that measures an expansive temperature range. From -20C to 550C (-4F to +1022F); and offers a 12-hour runtime. The high-resolution 256*192 pixel infrared camera allows you to say goodbye to blurry images. The tool is ready for analysis with the standalone and the PC modes; enabling users to project and upload images from the TC to their PC. Added benefits of the TC005 include seven options for Pseudo-Color Display; a 2-megapixel visible light camera for overlapping images; and a picture-in-picture mode.
