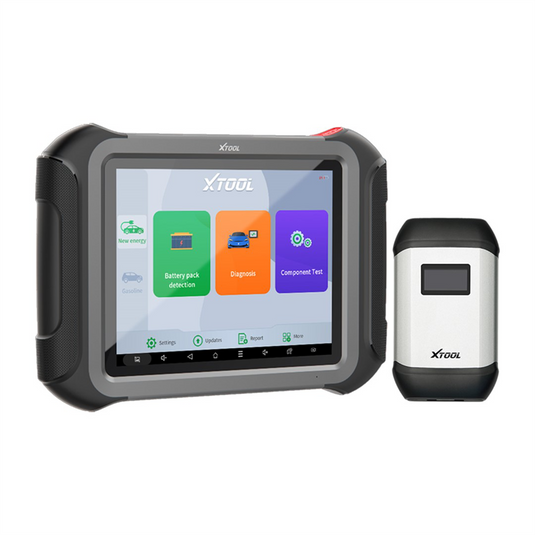

Xtooltech NEXT N9EV EV Smart Diagnostic System Scan Tool

Features and Benefits:

• Battery Pack Detection: Support Battery Pack Detection for Most EV Models on the Market for example Tesla; Renault; Volkswagen; Nissan; Etc
• Diagnostic for Tesla: You can perform DTC reading/clearing; read live data for Tesla Model X/Y/Z/3 with the special adapter
• Topology Mapping Function: Provides a Visual Representation of the communication status of each system in the vehicle during automatic scanning
• IMMO Function and Other Special Function: Support More than 40 Special Functions for example immoblizer; EPB; DPF; etc
• ADAS calibration supported: Support Calibration Support after replacing sensors such as camera and radar in ADAS
• Operating System: Android 10
• Processor: Rock chip 4 Core 1.80GHz
• Memory: 2G RAM; 128 ROM (202207 version)
• Display: 9.7 inch capacitive touch screen with 1024�768P resolution
• Communication Method: BT 4.2 | WIFI 2.4/5G
• Connectivity: DB15 TO VAG | USB 3.0
• Camera: Rear camera; 8.0 Megapixel; AF with Flashlight
• Sensors: Gravity Accelerometer; Ambient Light Sensor
• Auto Input/Output: Microphone; Dual Speakers; 4-Band 3.5 mm stereo/standard headset jack
• Working Voltage: 3.6 to 4.2V
• Working hours: 12 hours
• Operating Temperature: -10 to 40?
• Storage Temperature: -40 to 60?
• Humidity: 90%



N9EV is a professional EV smart diagnostic system. Equipped with a 9.7-inch high-performance long-lasting tablet. The system supports Bluetooth communication; DoIP protocol; and CAN-FD protocol. N9EV supports most EV models in the market; and all the software including APP; diagnostic software; and operating system support online updates. N9EV covers extensive diagnostic functions; including Battery Pack Detection; Tesla diagnosis; Reading ECU Information; Reading/Clear DTCs; Reading Live Data; and IMMO functions more than 40 special functions.
