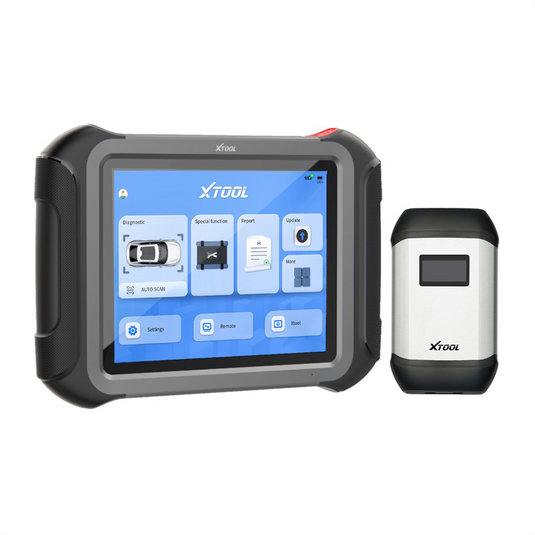

Xtooltech XT90 Diagnostic Scanner

Features and Benefits:

• Operating System: Android 10
• Processor?4 Core 1.50GHz
• Display?9.7 inch capacitive touch screen with 1024�768P resolution
• Communication?WIFI
• Connectivity?WIFI 2.4/5 GHZ | Type C
• Camera?Rear camera; 8.0 Megapixel; AF with Flashlight.
• Sensors?Gravity Accelerometer; Ambient Light Sensor
• Auto Input/Output?Microphone/ Speaker
• Working Voltage?9 to 36V
• Operating Temperature?-10 to 40?
• Storage Temperature?-40 to 60?
• Humidity?90%
• Dimension (L�W�H)?313X218X30 mm
• Protocol compatibility?CANFD; DoIP



XT90 is an advanced automotive diagnostic system featuring a large 9.7-inch screen and dual WIFI modules for stable data transfer between the tablet and VCI. It is designed for mechanics; electricians; and automotive repair stores; it provides full-system automotive diagnostics; live data; Bi-directional control tests; ECU coding and programming. XT90 also supports 42 standard special functions such as throttle adaptation; ABS bleeding; service light reset; EPB test; SAS calibration; BMS reset; injector coding; DPF regeneration; and TPMS reset. With 98% vehicle coverage and compatibility with over 100 brands and 10;000 car models; the XT90 is a versatile and reliable tool for any automotive professional.
