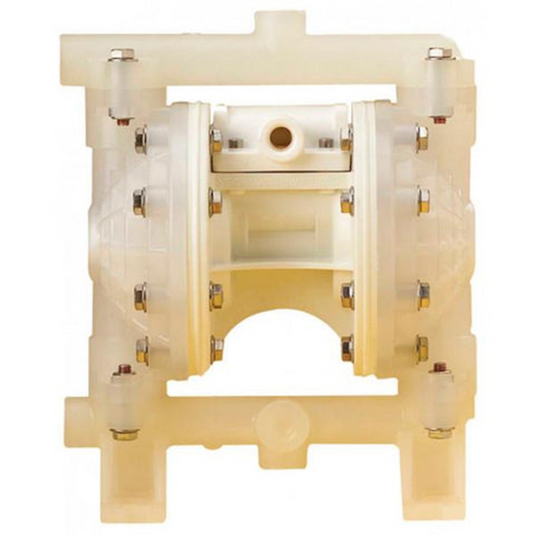

Zeeline by Milton ZE1035 - 1/2 inch Double Diaphragm Pump

Features and Benefits:

• Air Ratio: 1:1
• Fluid Inlet/Outlet: 1/2"" NPT
• Max Flow: 14 GPM
• Air Inlet Port: 1/4"" NPT
• Body Construction: Polypropylene
• Diaphragms: Buna N
• Balls: Acetal
• Seats: Polypropylene
• Ul Listed: No
• Air Consumption: 16CFM @ 100 PSI
• Bolt Pattern: 4.375"" X 6.75""
• Height: 10.600""
• Max Particle Size: 1/8""
• Suction Lift- Dry: 15'
• Suction Lift-Wet: 25'



ZE1035 - 1/2"" Double Diaphragm Pump
